Pressure Sensor, Fuel Rail (FRP): Removal

NOTE:

Removal steps in this procedure may contain installation details.

Follow instructions about safety information gasoline-fuel system, see SAFETY INFORMATION GASOLINE - FUEL SYSTEM

Fig 1: Identifying Engine Cover Removal

Courtesy of VOLVO CARS CORPORATION

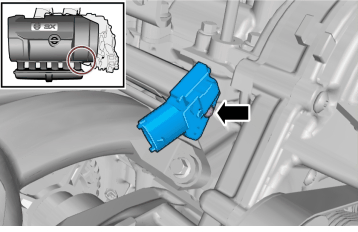

Fig 2: Locating Fuel Rail Pressure Sensor (FRP)

Courtesy of VOLVO CARS CORPORATION

Torque: M5

5 Nm
