Spark Plugs: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove ignition coil, see IGNITION COIL

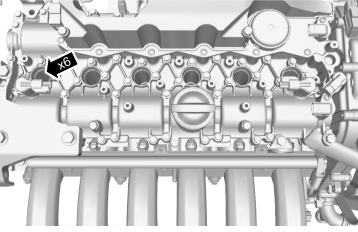

Fig 1: Locating Spark Plugs

GLL156187

Courtesy of VOLVO CARS CORPORATION

Torque: Spark plug

25 Nm

Torque: Spark plug

28 Nm
