Graphics And Symbols - General Information: Symbols: Tools

The symbols denote that a specific measurement instrument or tool is recommended for the working procedure.

1. Use strap wrench
2. Note

1. Use a Voltmeter
2. Use an Ammeter
3. Use an Ohmmeter
4. Use a pressure gauge, the value states the target value

1. Use measurement gauge. Measured value must not be less than 0.02 mm.
2. Use measurement gauge. Measured value shall be at specified value with tolerance.
3. Use measurement gauge. Measured value must not be more than 0.02 mm.

1. Use suitable pliers
2. Use suitable nippers
3. Long nose pliers
4. Universal grip pliers

1. Use Hose Pinch-0ff Pliers
2. Use an S-shaped hook
3. Use a load strap
4. Cut

1. Cut
2. Use a keyhole saw
3. Saw
4. Use a plasma cutter

1. Use a hot-air gun
2. Use hot-melt adhesive
3. Use a soldering iron/soldering pen
4. Blow clean using compressed air

1. Use a cutting disc/grinding disc
2. Use a 10 mm wide file
3. Use a rotary file
4. Use a wire brush

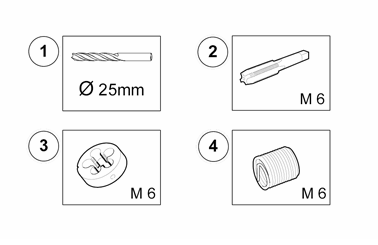

1. Use a drill with the stated size
2. use a tap to make threads
3. use a die to make threads
4. Repair threads using screw thread inserts

1. Use a step drill, drill to the stated size
2. Use a hole saw with the stated size
3. Deburr edges
4. Deburr edges

1. Measure
2. Mark using a pen
3. Use a drift
4. Scribe/mark up

1. Interior trim remover
2. Wedge
3. Drift
4. Use an appropriate impact tool

1. Crosshead screw
2. Slot screw
3. Torx screw
4. Allen screw

1. Use suitable pliers for internal circlips
2. Use suitable pliers for external circlips
3. Use suitable tool to remove/install the retainer rings

1. Scrape off
2. Vacuum cleaner
3. Wipe off
4. Sanding paper
