Body Side

Fig 1: Body Dimension Measuring Point Symbols
GLL155440Courtesy of VOLVO CARS CORPORATION

Explanation of symbols

1. As measured from center.

2. As measured from one edge.

3. Measurement is indicated from a cut marking.

GLL155442Courtesy of VOLVO CARS CORPORATION

The measurement takes place from the bottom of the recess. See the illustration above. If only one measuring point symbol is shown this applies to both points. Otherwise the symbols are shown on one side each of the measurement designation in the figure.

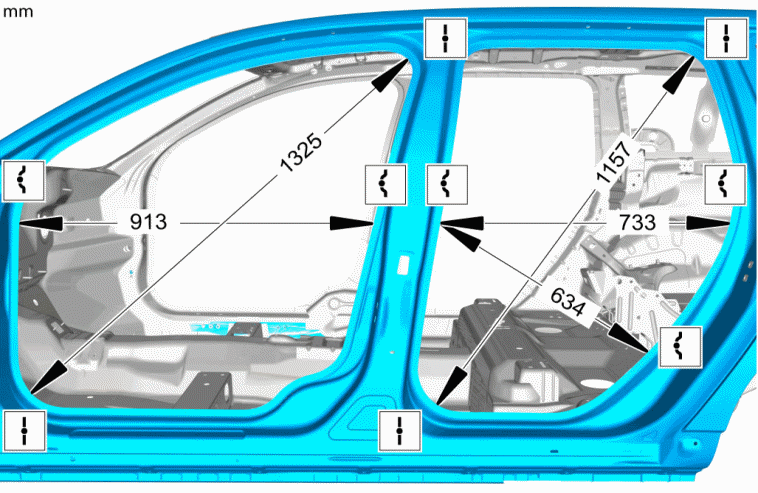

Fig 2: Side Door Opening Dimensions And Measurement Locations (1 Of 2)
GLL160859Courtesy of VOLVO CARS CORPORATION

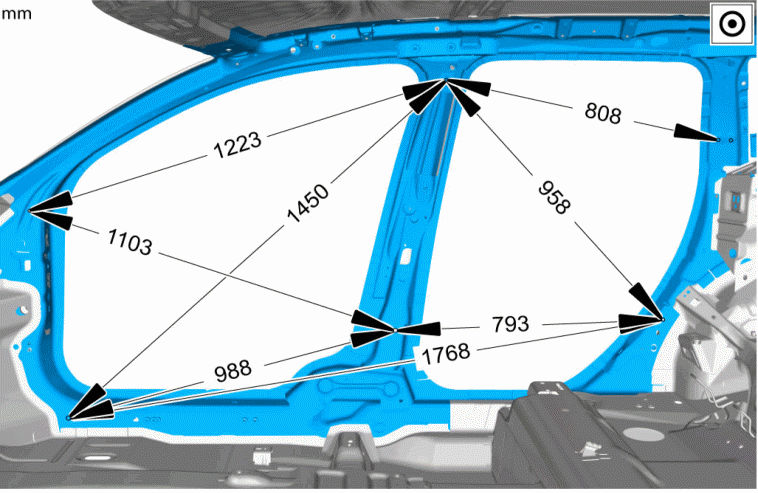

Fig 3: Side Door Opening Dimensions And Measurement Locations (2 Of 2)
GLL160860Courtesy of VOLVO CARS CORPORATION

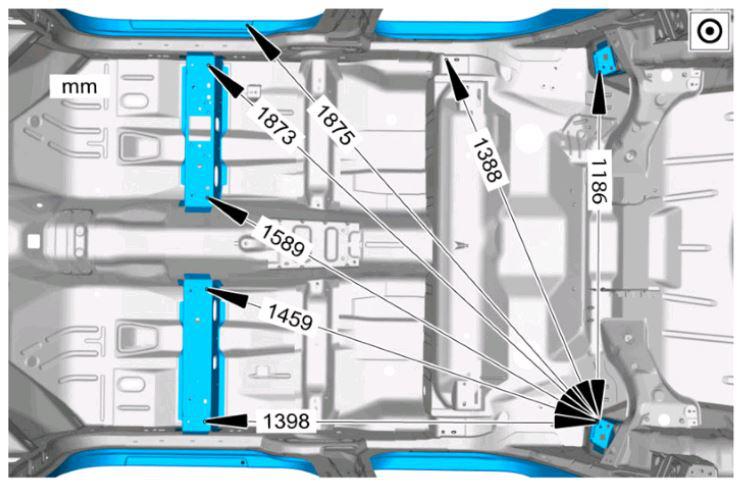

Fig 4: Floor And Side Sill Position Dimensions And Measurement Locations (1 Of 2)
G00589079Courtesy of VOLVO CARS CORPORATION

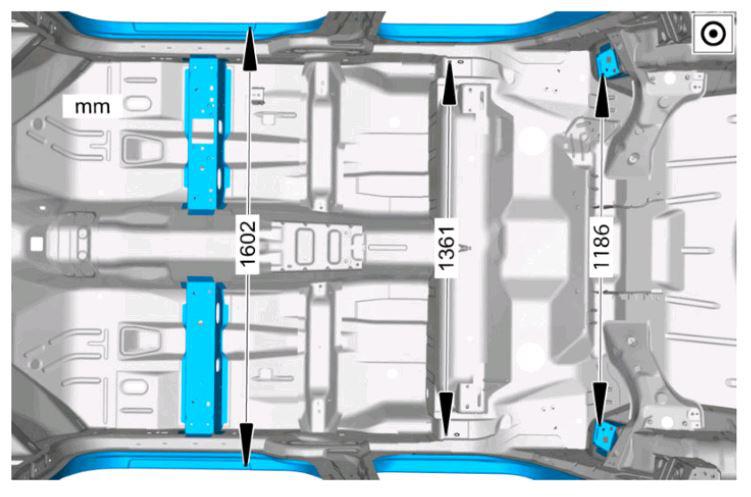

Fig 5: Floor And Side Sill Position Dimensions And Measurement Locations (2 Of 2)
G00589080Courtesy of VOLVO CARS CORPORATION

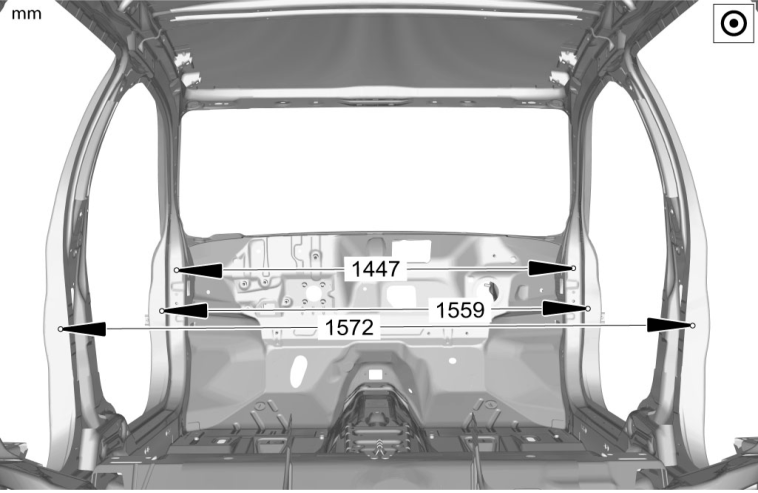

Fig 6: A-Pillar And B-Pillar Position Dimensions And Measurement Locations
GLL160863Courtesy of VOLVO CARS CORPORATION

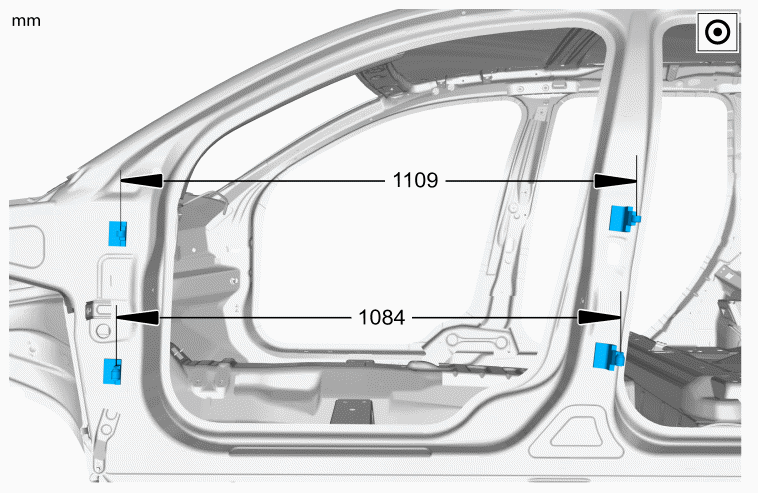

Fig 7: Side Door Hinge Position Dimensions And Measurement Locations
GLL160864Courtesy of VOLVO CARS CORPORATION
