Body Side: A-Pillar

Materials:
Designation	Part number
Insulation foam	3M 08463

Welding body components; see WELDING, GENERAL .

Remove the side section. See SIDE SECTION, EXPOSING .

Determine the extent of the damage. See BODY SIDE .

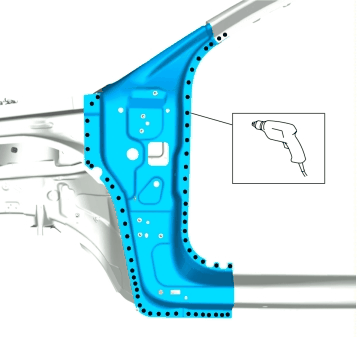

Fig 1: Outer A-Pillar Drilling Locations

GLL157764

Courtesy of VOLVO CARS CORPORATION

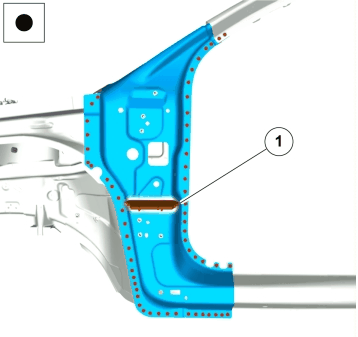

Fig 2: Outer A-Pillar Insulation Foam And Weld Locations

GLL157767

Courtesy of VOLVO CARS CORPORATION

Use: Insulation foam, 3M 08463

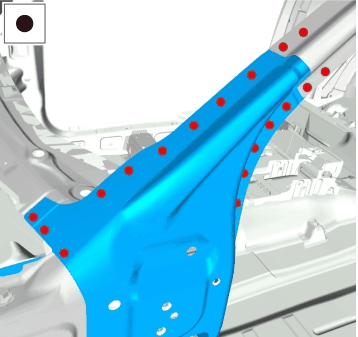

Fig 3: Outer A-Pillar Weld Locations (1 Of 5)

GLL157769

Courtesy of VOLVO CARS CORPORATION

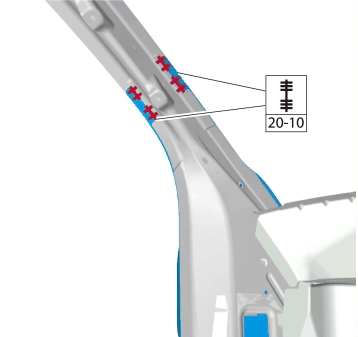

Fig 4: Outer A-Pillar Weld Locations (2 Of 5)

GLL157763

Courtesy of VOLVO CARS CORPORATION

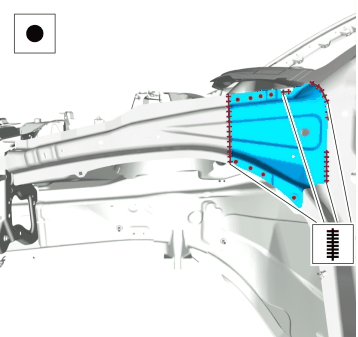

Fig 5: Outer A-Pillar Weld Locations (3 Of 5)

GLL157762

Courtesy of VOLVO CARS CORPORATION

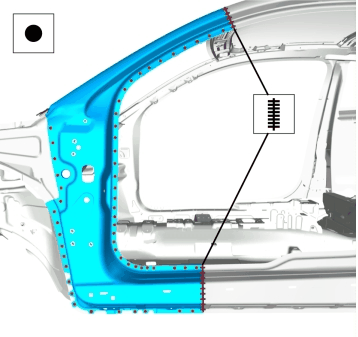

Fig 6: Outer A-Pillar Weld Locations (4 Of 5)

GLL157765

Courtesy of VOLVO CARS CORPORATION

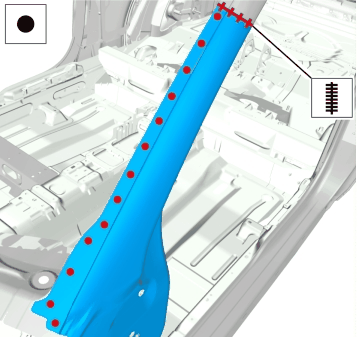

Fig 7: Outer A-Pillar Weld Locations (5 Of 5)

GLL157768

Courtesy of VOLVO CARS CORPORATION

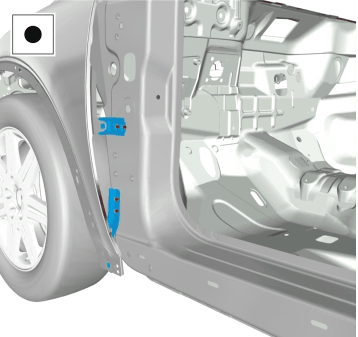

Fig 8: Front Fender Bracket Weld Locations

GLL157766

Courtesy of VOLVO CARS CORPORATION

Install the side door's hinges. See DOOR HALF HINGE .

Seal the A-pillar. See BODY SEAL, SEALING DIAGRAM .

Rustproof the A-pillar. See RUSTPROOFING .

Install the side section. See SIDE SECTION, EXPOSING .
