Engine Support Insulator, Right: Removal

NOTE:

Removal steps in this procedure may contain installation details.

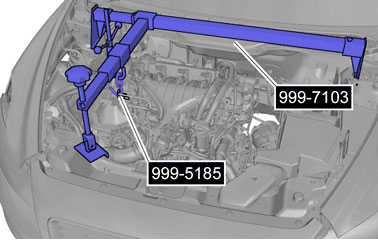

Fig 1: Installing Engine Support Beam and Hook (9995185, 997103)

Courtesy of VOLVO CARS CORPORATION

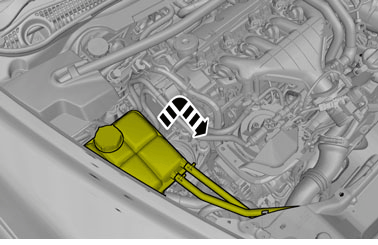

Fig 2: Removing Coolant Reservoir

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

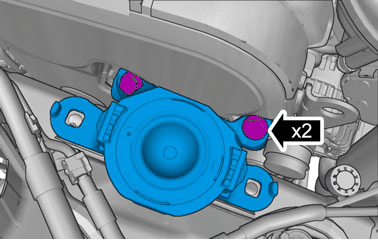

Fig 3: Remove/Install Engine Pad, Right

Courtesy of VOLVO CARS CORPORATION

Torque: Engine pad to frame member

90 Nm

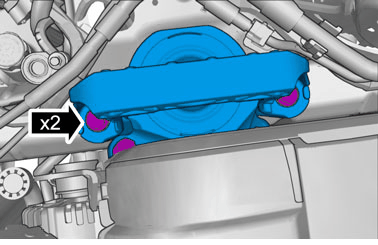

Fig 4: Engine Pad Bolts to Engine

Courtesy of VOLVO CARS CORPORATION

Torque: Engine pad to engine, screw

133 Nm
