Installing The Front Sub-Frame Bushing

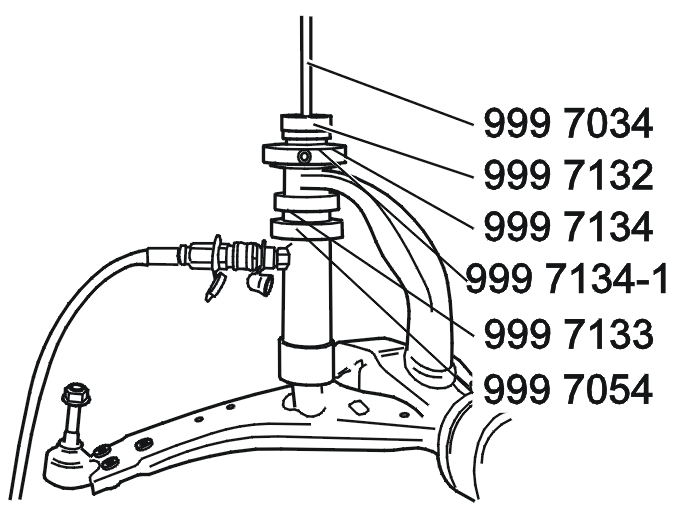

Fig 1: Identifying Hydraulic Cylinder

Courtesy of VOLVO CARS CORPORATION

Install the hydraulic cylinder.

Use: see 9997054 with: see 9997034 , nut: see 9997132 , socket: see 9997134 , lock ring: see 9997134 and ring: see 9997133 .

Pull in the bushing until it is centered in the link arm. Pull the bushing in approximately half-way and then remove: see 9997134 .

Then pull the bushing in so that it bottoms out against the flange
