Removing Front Sub-Frame Bushing

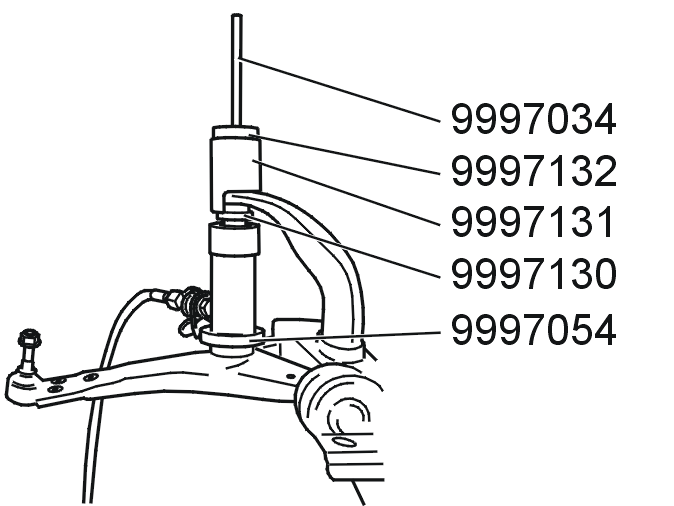

Fig 1: Identifying Tools 9997054, 9997034, 9997132, 9997131 And 9997130

Courtesy of VOLVO CARS CORPORATION

Press the control arm into place.

Install the hydraulic cylinder.

Use: see 9997054 with: see 9997034 , nut M12: see 9997132 , socket: see 9997131 and drift: see 9997130 .

Pull the bushing out.
