Camshaft Position Sensor (CMP) (Turbo): Removal

NOTE:

Removal steps in this procedure may contain installation details.

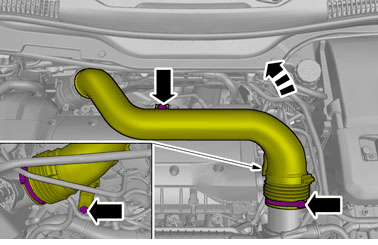

Fig 1: Identifying Air Intake Hoses And Fasteners

Courtesy of VOLVO CARS CORPORATION

Torque: M6

10 Nm

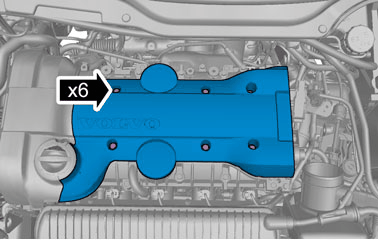

Fig 2: Identifying Engine Cover And Screws

Courtesy of VOLVO CARS CORPORATION

Torque: M6

10 Nm

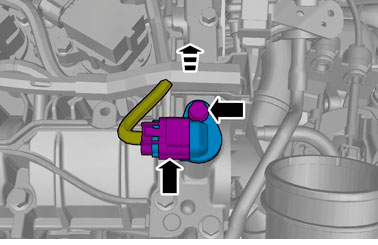

Fig 3: Identifying Camshaft Position Sensor Connector And Screw

Courtesy of VOLVO CARS CORPORATION

Torque: M6

10 Nm
