Gear Shift Solenoids

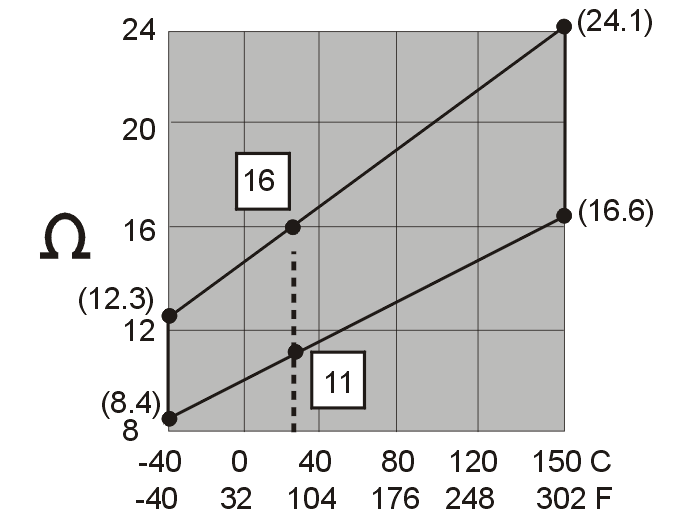

Fig 1: Identifying Ohms Resistance Temperature Graph

Courtesy of VOLVO CARS CORPORATION

For other values, see diagram. When taking readings at temperatures other than +20°C, a control reading must be taken at +20°C. This is done to check whether the resistance is correct or not.
