Installing The Control System

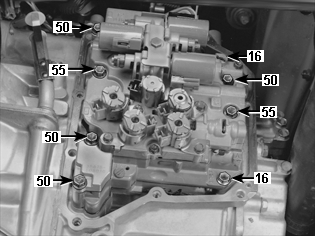

Fig 1: Identifying Control System

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the gear selector's lever is in N (neutral).

Align the control system on the lever for the gear selector.

Install:

the screws for the control system
a new gasket for the cover on the control system.
NOTE:
The various screw lengths are indicated in mm.

Lightly tighten the M6 screws alternately. Then tighten alternately.
