Navigation System Module: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove Rear Quarter Panel Speaker, see REAR QUARTER PANEL SPEAKER

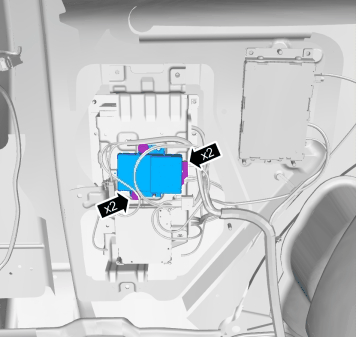

Fig 1: Removing/Installing Navigation System Module
GLL158403Courtesy of VOLVO CARS CORPORATION

Torque:  M6

10 Nm
