Ignition Coil (Non-Turbo): Removal

NOTE:

Removal steps in this procedure may contain installation details.

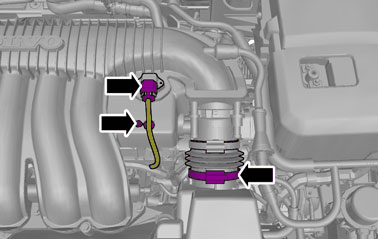

Fig 1: Identifying Air Intake Hose Clamp And Electrical Connector With Cable Clamp

Courtesy of VOLVO CARS CORPORATION

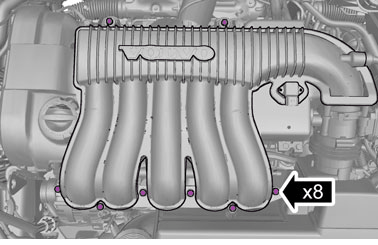

Fig 2: Identifying Intake Plenum and Bolts

Courtesy of VOLVO CARS CORPORATION

Torque: M6

10 Nm

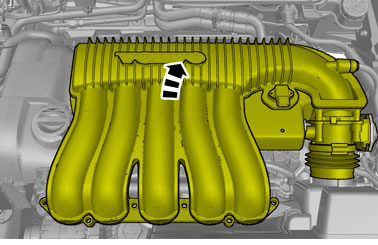

Fig 3: Moving Plenum Out of the Way

Courtesy of VOLVO CARS CORPORATION

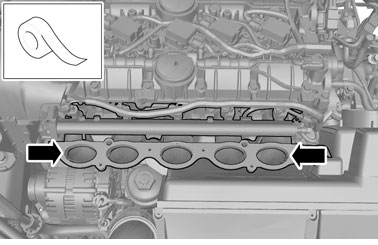

Fig 4: Sealing Off Openings

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that all openings are sealed. Use new blanking caps.

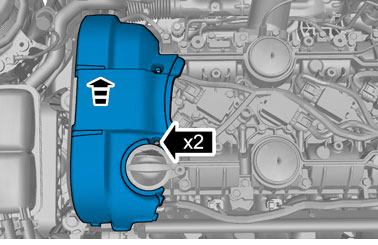

Fig 5: Identifying Engine Cover End Piece And Screws

Courtesy of VOLVO CARS CORPORATION

Torque: M6

10 Nm

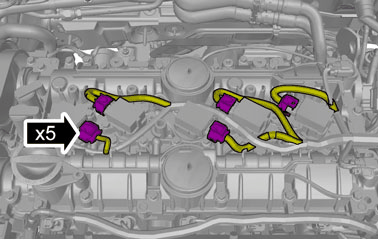

Fig 6: Identifying Ignition Coil Connectors

Courtesy of VOLVO CARS CORPORATION

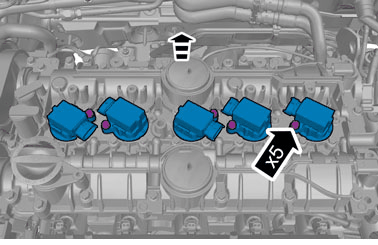

Fig 7: Identifying Ignition Coil Screws

Courtesy of VOLVO CARS CORPORATION

Torque: M6

10 Nm
