Heat EXCHANGER: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2013 Volvo C70, 2012 Volvo C70, 2011 Volvo C70, 2010 Volvo C70, and 2009 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Install a new seal carefully using the removed evaporator as a template.

Install:

the heat exchanger
the heat exchanger pipes through the seal.

HINT: To facilitate assembling the pipes, lubricate the ends with a little oil.

NOTE:

Use new O-rings for the pipe ends.

Install the pipes at the connection to the heat exchanger pipes.

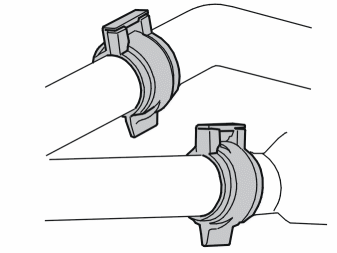

Fig 1: Identifying Clips

Courtesy of VOLVO CARS CORPORATION

Install the clips so that they lock securely. A click must be heard.

NOTE:

The clips only fit one way in the pipe connection.

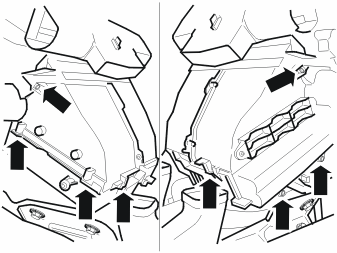

Fig 2: Identifying Screws For Cover, Air Duct And Brackets On Both Sides Of Climate Control Units

Courtesy of VOLVO CARS CORPORATION

Install:

the 8 x screws for the cover. Tighten
the air duct
the brackets on both sides of the climate control unit and the screws, 3 per bracket. Tighten.
