Preparatory Work
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2013 Volvo C70, 2012 Volvo C70, 2011 Volvo C70, 2010 Volvo C70, and 2009 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Draining coolant and removing the engine splash guard.
Remove:
- the cover for the expansion tank and raise the vehicle

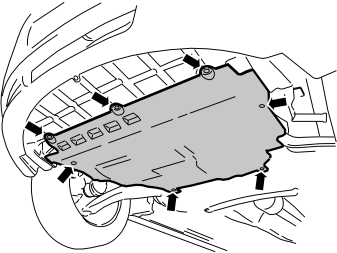

- the engine splash guard.
Attach a hose on the nipple at the radiator and lower the hose to a container.
Open the nipple and drain off the coolant.
Lower the vehicle.

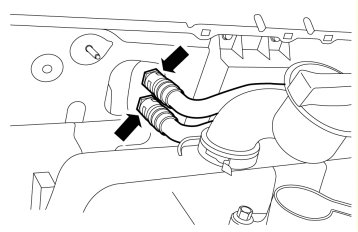

Detach the radiator hoses from the engine compartment.
Turn the radiator hose connection counter-clockwise to the end position and then pull off the radiator hose.
