Body Side: B-Post: Removal

Removing components and assessing damage

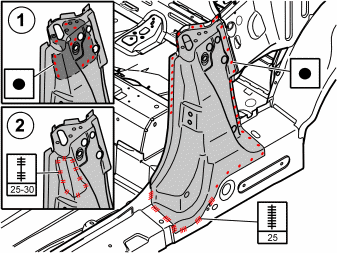

Fig 1: B-Post And B-Post Component Removal Weld Counts, Specifications, And Locations

Courtesy of VOLVO CARS CORPORATION

Remove:

• components, see SIDE SECTION, EXPOSING
• outer rear fender, see FENDER

Determine the extent of the damage. See BODY SIDE

HINT: Save colored edges that show where plates sit. They facilitate fitting.
