Door Cassette
›
Function
›
Edge Trim (Plastic Carrier)
Edge Trim (Plastic Carrier)

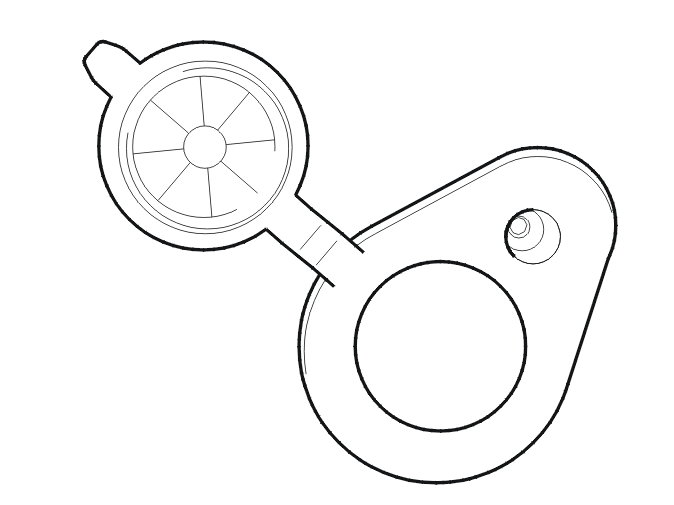

Fig 1: Identifying Edge Trim (Plastic Carrier)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Edge trim is located in the holes to:
seal
protect the cable harness at the grommet
prevent cuts during installation or replacement.
