Engine Block, Installing Components [2017, B4204T11, TG-81SC AWD]: Installation

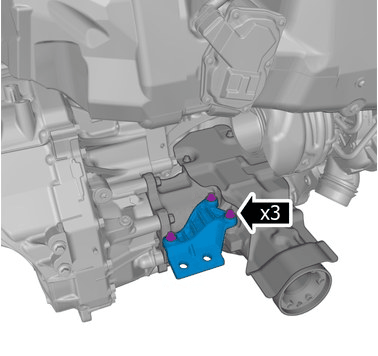

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M10, 50 Nm

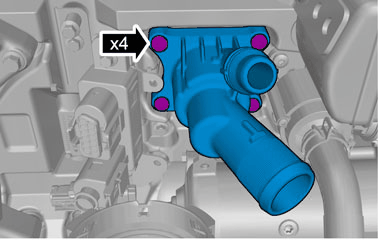

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Install the screws.

Torque: M6, 10 Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Install the screws.

Install the following items:

Torque: M8, 24 Nm
Torque: M6, 10 Nm

Courtesy of VOLVO CARS CORPORATION

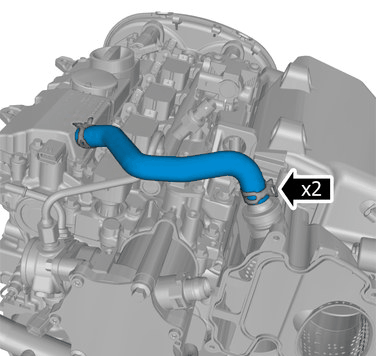

Tighten the hose clamps.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the gaskets are correctly located.

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Courtesy of VOLVO CARS CORPORATION

Install the following items:

Torque: Exhaust manifold to cylinder head, nut
- Stage 1: 20 Nm
- Stage 2: 20 Nm
Torque: Exhaust manifold to cylinder head, bolt
- Stage 1: 20 Nm
- Stage 2: 20 Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Install the screws.

Torque: M6, 10 Nm

Courtesy of VOLVO CARS CORPORATION

Install the following items:

Torque: Oil pressure pipe to the turbocharger, 26 Nm
Torque: M6, 10 Nm

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M6, 10 Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the area around the component is clean and free of foreign material.

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Install the screws.

Torque: M6, 10 Nm

Perform fuel injectors FUEL INJECTOR

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the area around the component is clean and free of foreign material.

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Install the screws.

Torque: Fuel rail, 20 Nm

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M6, 10 Nm

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M6, 10 Nm

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M6, 10 Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Use lint free cloth.

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Use: Isopropyl,

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M8, 24 Nm

Courtesy of VOLVO CARS CORPORATION

WARNING:

Make sure that the component is positioned correctly.

Use: Engine oil,

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M8, 24 Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that a new component is installed.

Refer to Special Tool: 981 4198

Courtesy of VOLVO CARS CORPORATION

Tighten the hose clamp.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the mating faces are clean and free of foreign material.

Torque: Oil pressure sensor, 15 Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the component before removal.

Install the screw.

Torque: Knock sensor, 20 Nm

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M8, 24 Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure to turn the component until stop.

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M8, 24 Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Only tighten the nut finger tight at this stage.

NOTE:

Make sure to turn the component until stop.

Courtesy of VOLVO CARS CORPORATION

Install the screw.

Torque: M8, 24 Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: Generator, 48 Nm

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Assemble the following items:

Torque: M8, 24 Nm
Torque: M10, 50 Nm

Courtesy of VOLVO CARS CORPORATION

Install the screw.

Torque: M6, 10 Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Install the screws.

Torque: M7, 17 Nm

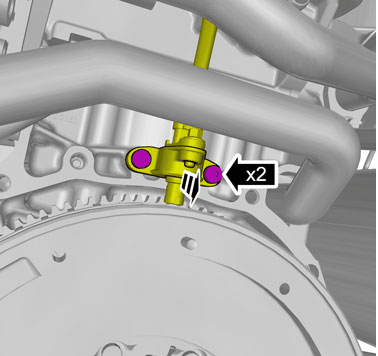

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Install the screws.

Torque: M6, 10 Nm

Courtesy of VOLVO CARS CORPORATION

Assemble the following items:

Depress the locking device.
Install the screw.
Torque: M6, 10 Nm

Courtesy of VOLVO CARS CORPORATION

Install the hose.

Depress the locking device.

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M8, 24 Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the mating faces are clean and free of foreign material.

Install the screws.

Torque: M6, 10 Nm

Courtesy of VOLVO CARS CORPORATION

Remove the Special Tool.

Install carrier plate CARRIER PLATE

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M7, 17 Nm

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M10, 50 Nm

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M10, 50 Nm

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M10, 50 Nm

Courtesy of VOLVO CARS CORPORATION

Install the screw.

Torque: M6, 10 Nm

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M10, 50 Nm

Courtesy of VOLVO CARS CORPORATION

Install the nuts

Torque: Torque converter, to Flexplate, 60 Nm

Turn the engine

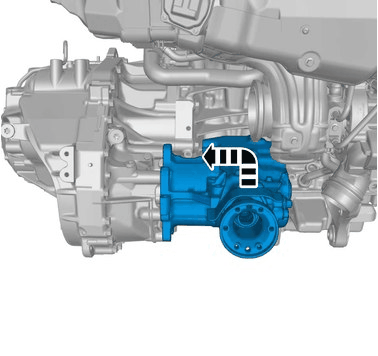

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Install the marked component.

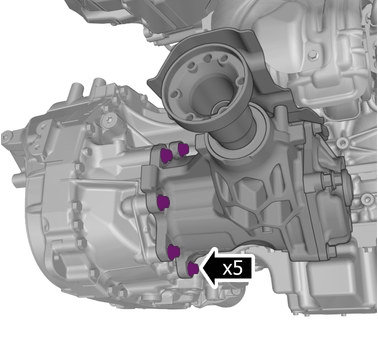

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M10, 50 Nm

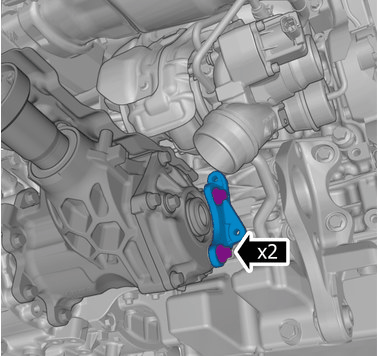

Courtesy of VOLVO CARS CORPORATION

NOTE:

Only tighten the bolts finger tight at this stage.

Install the marked component.

Install the screws.

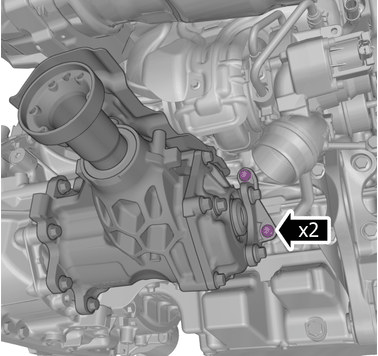

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M8, 24 Nm

Courtesy of VOLVO CARS CORPORATION

Tighten the bolts.

Torque: M10, 50 Nm

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Tighten the bolts.

Torque: M8, 24 Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.
