Engine Block, Installing Components

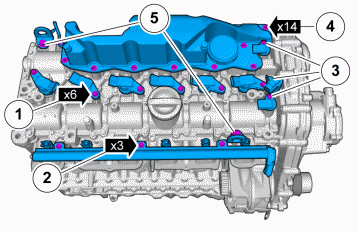

Fig 1: Installing Components
GLL161251Courtesy of VOLVO CARS CORPORATION

Install the following items:

  1. ignition coils

    Torque:  M6

    10 Nm

  2. fuel rails/fuel injectors

    Torque:  M6

    10 Nm

  3. the sensor

    Torque:  M6

    10 Nm

  4. cover crankcase ventilation

    Torque:  M6

    10 Nm

  5. lifting eyes

    Torque:  M10

    50 Nm

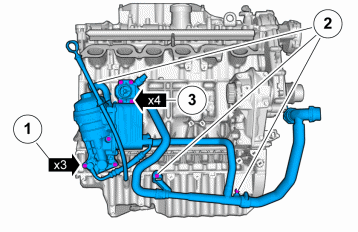

Fig 2: Installing Oil/Cooling Components
GLL161250Courtesy of VOLVO CARS CORPORATION
  1. Oil trap

    Torque:  M6

    10 Nm

  2. water pipe

    Torque:  M7

    17 Nm

  3. the thermostat housing

    Torque:  M6

    10 Nm

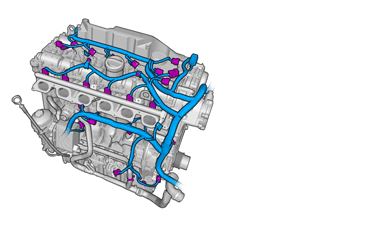

Fig 3: Identifying Wiring Harness
GLL175025Courtesy of VOLVO CARS CORPORATION

Install the cable harness.

Torque:  M6

10 Nm

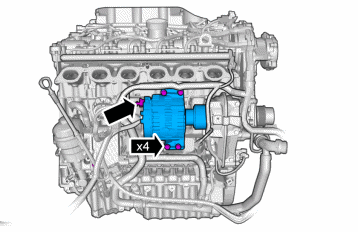

Fig 4: Installing The Generator
GLL161248Courtesy of VOLVO CARS CORPORATION

Install the generator. See GENERATOR

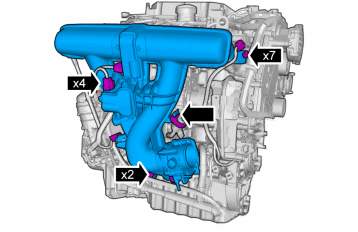

Fig 5: Remove/Install Intake Manifold
GLL161246Courtesy of VOLVO CARS CORPORATION

Install intake manifold. See INDUCTION PIPE

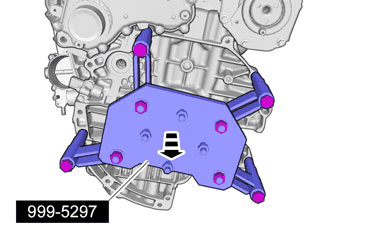

Fig 6: Removing/Installing Adapter
GLL176417Courtesy of VOLVO CARS CORPORATION

see 9995297 see 9992520 see 9989721

Install carrier plate. See CARRIER PLATE

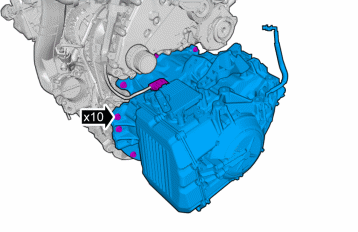

Fig 7: View of Transmission Installed
GLL161244Courtesy of VOLVO CARS CORPORATION

Install transmission. See TRANSMISSION (B6324S, TF-80SC; 2007-2010) or TRANSMISSION (B6324S, TF-80SC AWD; 2007-2010)

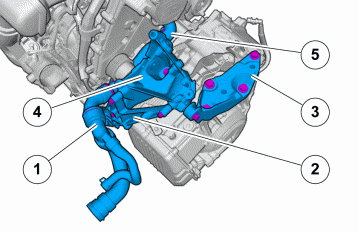

Fig 8: Identifying Auxiliary Brackets
GLL161243Courtesy of VOLVO CARS CORPORATION

Install the following items:

  1. radiator hose
  2. front auxiliary unit console, see AUXILIARY BRACKETS
  3. console transmission
  4. AC-console
  5. water pipe

    Torque:  M6

    10 Nm

Install the engine. See ENGINE, INSTALLING
