Crankshaft Position Sensor (CKP): Replacement: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the air filter housing, see AIR CLEANER HOUSING

Fig 1: Identifying Pipe
GLL178520Courtesy of VOLVO CARS CORPORATION

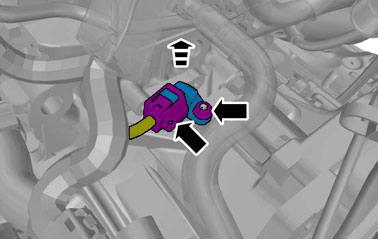

Fig 2: Identifying Crankshaft Position Sensor
GLL178521Courtesy of VOLVO CARS CORPORATION

Torque:  M6

10 Nm
