Transferring Suction Line
Courtesy of VOLVO CARS CORPORATION
NOTE:
Applies to vehicles equipped with auxiliary heater.

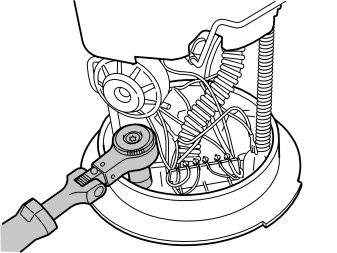

Remove the plug for the suction line from the underside of the level sensor, use a 9 mm socket.
Transfer the suction line to the new fuel pump.
