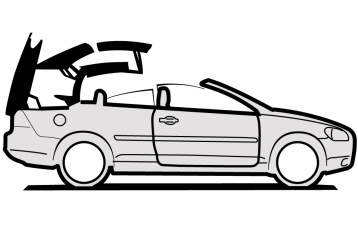

Roof Assembly: Installing

Fig 1: Installing Roof Assembly

Courtesy of VOLVO CARS CORPORATION

Fig 2: Mark The Link System's Position Against The Body

Courtesy of VOLVO CARS CORPORATION

Fit the roof according to the marks made.

Check the play on the roof (5 mm) against the windscreen frame. Adjust the positions at the roof mounting as needed.

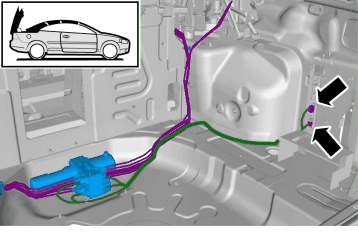

Fig 3: View Of Hydraulic Connectors

Courtesy of VOLVO CARS CORPORATION

Fit the hydraulic hoses 91, 92 and 93 on the hydraulic pump.

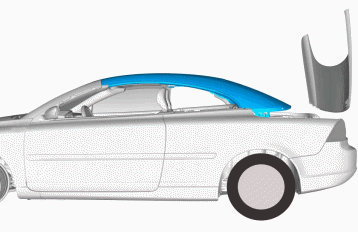

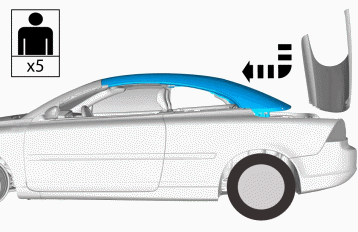

Fig 4: Identifying Rear Side Panel Cover Tabs

Courtesy of VOLVO CARS CORPORATION

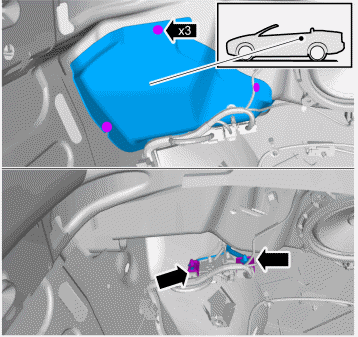

Fig 5: Check For Play And The Alignment

Courtesy of VOLVO CARS CORPORATION

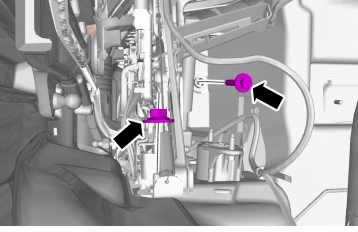

Fig 6: Mark The Link System's Position Against The Body

Courtesy of VOLVO CARS CORPORATION

Check the position of the link system to the body according to the markings made.

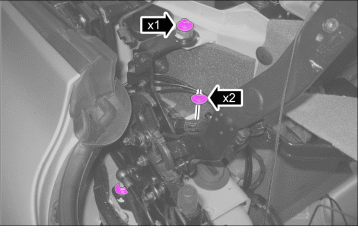

Fig 7: View Of Roof Up Position

Courtesy of VOLVO CARS CORPORATION

Check the play on the roof against the windscreen frame. It should be 5 mm. Adjust the positions at the roof mounting as needed.

Calibrate the roof. See ROOF CALIBRATION .

Dismantle the roof plates for finishing. See ROOF PANEL, PAINTING
