Bumper Rail, Front: Installation

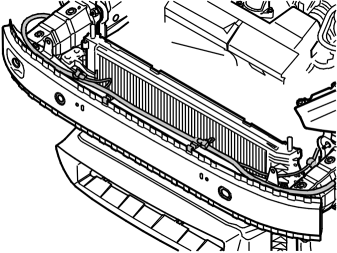

Installing the bumper rail

NOTE:

For tightening torques, see: TIGHTENING TORQUE .

Courtesy of VOLVO CARS CORPORATION

Install:

the bumper rail with 6 M6 screws. Do not install the two screws of the power steering unit.
the radiator with 4 M8 screws
the power steering unit with 4 M8 screws
the cable harness and washer hose to the bumper rail
the horn with 2 M6 screws
the washer fluid reservoir with 1 M6 screw
the front section, see FRONT END .

Rustproof. See RUSTPROOFING .
