Bumper Rail, Front: Removal

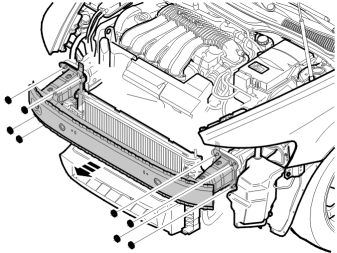

Removing the bumper rail

Courtesy of VOLVO CARS CORPORATION

Remove:

• the front section, see FRONT END
• the 4 screws of the power steering bracket.

Suspend the unit from a steel wire.

Remove:

• the 1 front screw of the washer fluid reservoir
• the 2 screws of the horn
• the cable harness and washer hose from the bumper rail.

Support the radiator core and detach the radiator by removing the 4 screws.

Remove the remaining 6 screws of the bumper rail and remove the rail.
