Switch For Load Assistance

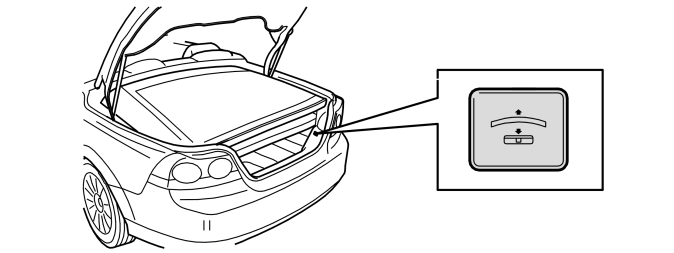

The switch for load assistance is located on the right-hand side on the sill in the cargo compartment and is directly connected to the Convertible Roof Module (CRM). The switch controls a function called load assistance.
For operation, press the switch:
- once to activate movement
- once more to stop (if the limit position has not already been reached)
- a final time to reset the roof sections.
Operation is automatic and the switch must not be held depressed.
Functions of the load assistance switch:
- to raise the stored roof sections
- to lower the stored roof sections
- to stop operation of the load assistance.
