Integrated Audio Module (IAM) (2007): Design: Loudspeakers

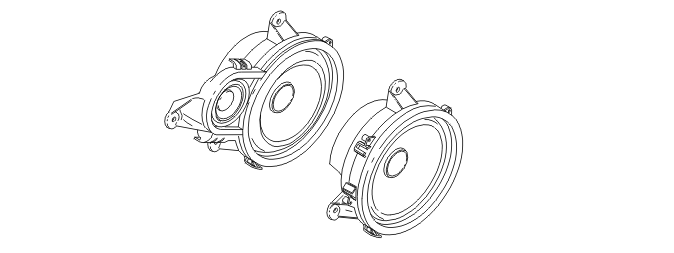

Fig 1: Identifying Loudspeakers

Courtesy of VOLVO CARS CORPORATION

The integrated audio module for has 4 speakers directly connected to the control module:

• one pair of front loudspeakers
• one pair of rear loudspeakers.

Impedance for each speaker is 4 Ω.

For the two other versions with the integrated audio module(IAM), the speakers are connected to the audio module (AUD).
