Checking Components

Remove the camshaft reset valve. Check the oil ducts for the cylinder head for the camshaft reset valve (intake) for blockages and dirt.

Remedy as necessary.

Try a new camshaft reset valve (intake) if the above remedy does not solve the fault.

HINT: The fault can also be caused by a damaged variable valve timing unit. The variable valve timing unit may be damaged if the above fault-tracing and corrective action do not remedy the fault.

Other information:

• see VVT SOLENOID
• see VVT UNIT

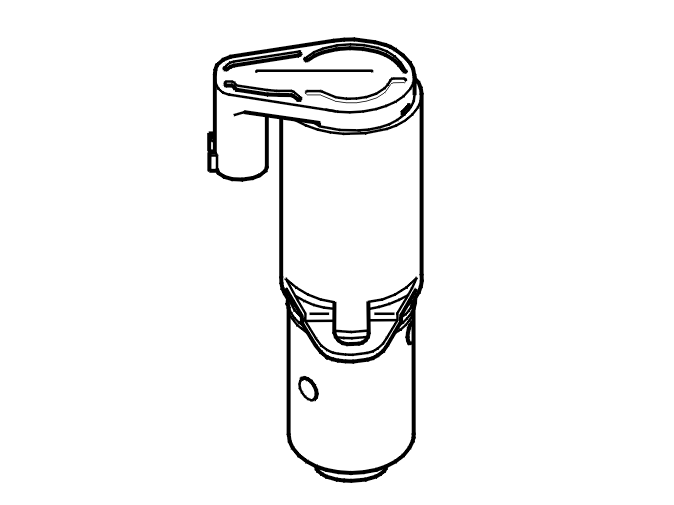

Fig 1: Identifying Variable Valve Timing (VVT) Unit

Courtesy of VOLVO CARS CORPORATION

• Continue

  Refer to VERIFICATION
