Battery Analyzer Set-Up Clarification (TJ26090)
Publication date: 2012-03-23Reference number: TJ26090
BATTERY ANALYZER SET-UP CLARIFICATION
TECHNICAL SERVICE BULLETIN
Reference Number(s): TJ26090, Date of Issue:
March 23, 2012
| VOLVO: | See Vehicle Type Table below |
| SECTION: | Battery |
| GROUP: | 3110 |
| NO.: | US26090.1.1 en-US |
| Related Ref. Number(s): | VIDA, VSTG, TJ26090 |
ATTACHMENT
ATTACHMENT
| File Name | File Size |
|---|---|
| old_label.jpg | 0.0351 MB |
| new_label.JPG | 0.0486 MB |
VEHICLE TYPE
VEHICLE TYPE
| Type | Eng | Eng Desc | Sales | Body | Gear | Steer | Model Year | Plant | Chassis range | Struc Week Range |
|---|---|---|---|---|---|---|---|---|---|---|
| 124 | 2012-9999 | - | 0-0 | |||||||
| 134 | 2012-9999 | - | 0-0 | |||||||
| 136 | 2012-9999 | - | 0-0 | |||||||
| 156 | 2012-9999 | - | 0-0 | |||||||
| 533 | 2012-9999 | - | 0-0 | |||||||
| 542 | 2012-9999 | - | 0-0 |
CSC CUSTOMER SYMPTOM CODES
CSC CUSTOMER SYMPTOM CODES
| Code | Description |
|---|---|
| LM | Battery/Dead battery |
DTC DIAGNOSTIC TROUBLE CODES
Text

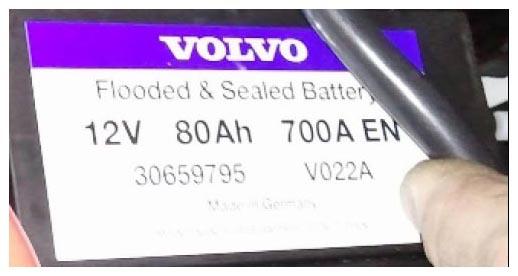

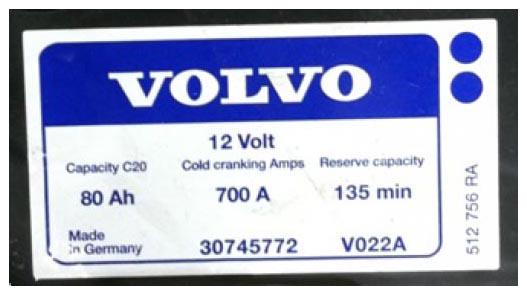

Sealed batteries were recently introduced in production. The label on these batteries use slightly different text than on previous batteries. This can cause confusion when using the Battery Analyzers.
When using the Battery Analyzer 3100:
Choose "BY CCA" even though the term CCA or Cold Cranking Amps is missing on the labels on the new sealed batteries.
When using the Battery Analyzer 3300:
Choose "Regular Liquid", then "EN", then the rating, for example "700A". (This setting applies for all batteries, both the old & new label).
To view TJ attachments continue to information below:
