Dim Speaker Does Not Work (TJ25164)
Publication date: 2013-01-11Reference number: TJ25164
DIM SPEAKER DOES NOT WORK
TECHNICAL SERVICE BULLETIN
Reference Number(s): TJ 25164, Date of Issue:
January 11, 2013
| VOLVO: | 2007-2012 S80; 2011-2012 S60; 2008-2010 V70; 2008-2012 XC70; 2010-2012 XC60 |
| SECTION: | Combined Instrument, Complete |
| GROUP: | 3811 |
| NO.: | |
| Related Ref. Number(s): | TJ25164 |
ATTACHMENT
ATTACHMENT DESCRIPTION
| File Name | File Size |
|---|---|
| Date and serial number DIM.jpg | 0.0326 MB |
VEHICLE TYPE
VEHICLE TYPE
| Type | Eng | Eng Desc | Sales | Body | Gear | Steer | Model Year | Plant | Chassis range | Struc Week Range |
|---|---|---|---|---|---|---|---|---|---|---|
| 124 | 2007-2012 | - | 0-0 | |||||||
| 134 | 2011-2012 | - | 0-0 | |||||||
| 135 | 2008-2010 | - | 0-0 | |||||||
| 136 | 2008-2012 | - | 0-0 | |||||||
| 156 | 2010-2012 | - | 0-0 |
CSC CUSTOMER SYMPTOM CODES
CODE DESCRIPTION - CSC
| Code | Description |
|---|---|
| 1R | Front monitoring/Active safety/Lane Departure Warning does not work |
| 1S | Front monitoring/Active safety/Driver Alert Control does not work |
| 8M | Warning lights and chimes/Other warning/chime problems |
| KX | Warning lights and chimes/Seat belt reminder indication/no indication |
| 8W | Seat belt and other safety systems/Air bag (SRS, IC, ROPS, SIPS) problems |
DTC
Diagnostic Trouble Codes
TEXT
DIM = Driver Information Module
DESCRIPTION
Warning sounds from the DIM for the seat belt reminder, Forward Collision Warning and Lane Departure Warning may not occur due a faulty speaker.
PRODUCT MODIFICATION

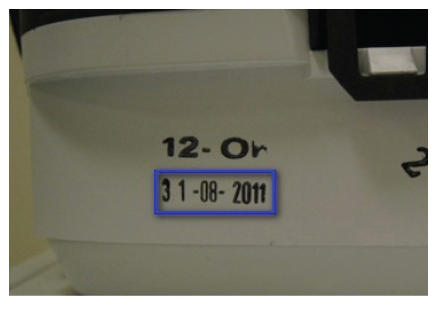

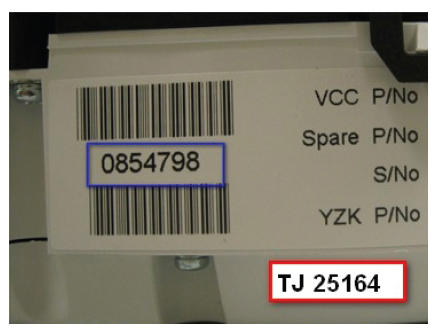

An improved speaker has been introduced at the DIM supplier from August 31st, 2011. DIMs produced from that date and with serial number 0854798 and higher have the improved speaker, see below.
SERVICE
Replace the DIM.
VSTG OPERATION NUMBER
38130-2 Driver information module remove - install/replace, see VSTG
36004-2 Software control module downloading, see VSTG
