Transmission Components

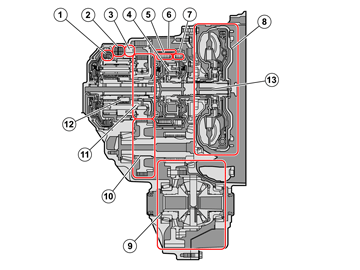

Fig 1: Identifying Cross-Section Of Transmission

Courtesy of VOLVO CARS CORPORATION

Number	Designation	Number	Designation
1	Clutch C2	8	Torque converter
2	Brake B2	9	Differential unit
3	Freewheel F1	10	Driven counter rotating gear
4	Front planetary train	11	Driven gear
5	Clutch C1	12	Rear planetary train, Ravigneaux
6	Brake B1	13	Input shaft
7	Clutch C3
