Location Of Components (2011-2012)

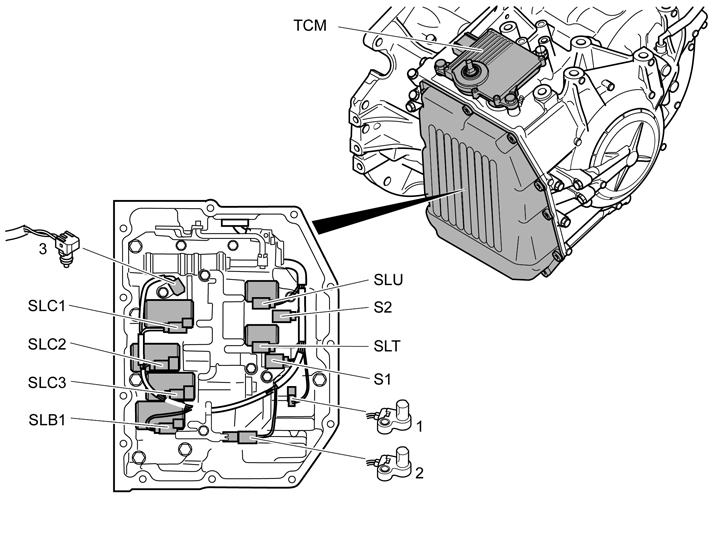

Fig 1: Locating Transmission Input And Output Speed Senors And Oil Temperature Sensor

Courtesy of VOLVO CARS CORPORATION

1. Transmission input speed sensor:
2. Transmission output speed sensor:
3. Oil temperature sensor.
