Rear Audio Separation Control Module - Removal And Installation
›
Entertainment Systems
›
Control Module, Rear Audio Separation, Replacing
›
Removal
Control Module, Rear Audio Separation, Replacing: Removal
Move the seat to its front-most position.

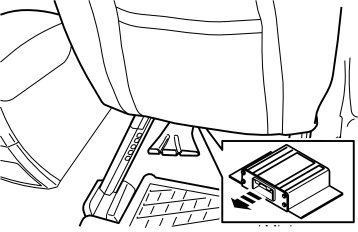

Fig 1: Identifying Control Module Location
Courtesy of VOLVO CARS CORPORATION
Remove the following items:
the control module, pull from the Velcro strip
the connector
