Passenger Compartment Fan Control Module Connector End View (4/31)

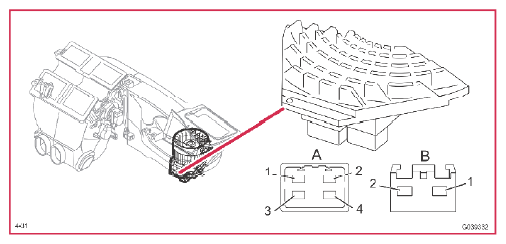

Fig 1: Passenger Compartment Fan Control Module Connector End View (4/31)
G10804713Courtesy of VOLVO CARS CORPORATION
