Installing The Lock

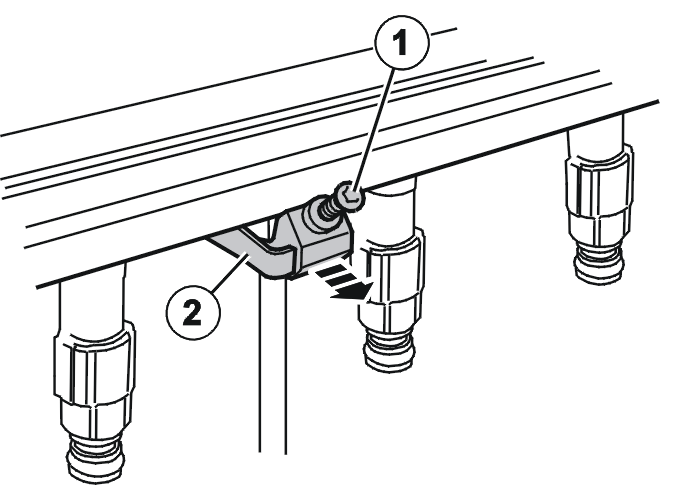

Fig 1: Identifying Secondary Lock & Screw
GLL145731Courtesy of VOLVO CARS CORPORATION
NOTE:

Screw in the screw until it takes.

Install the fuel rail.

Press in the secondary lock (2).

Screw the screw (1) right in.
