Software Download Guide (TJ20278.6.11)
Publication date: 2016-09-06Reference number: TJ20278.6.11
Supersedes refnos: TJ 20278, TJ20278
SOFTWARE DOWNLOAD GUIDE
TECHNICAL SERVICE BULLETIN
Reference Number(s): TJ 20278.6.11, Date of Issue:
September 6, 2016
| VOLVO: | 2013 and beyond S80, S60, XC70, V60, XC60, XC90, C30, C70; 2016 and beyond S60CC, S60 Inscription, XC90; 2015 and beyond V60CC |
| SECTION: | Service and Maintenance |
| GROUP: | 1700 |
ATTACHMENT
ATTACHMENT
| File Name | File Size |
|---|---|
| P1_Customer_Settings.pdf | 0.0143 MB |
| P2_Customer_Settings.pdf | 0.0101 MB |
| P3_Non_Sensus_Customer_Settings.pdf | 0.0178 MB |

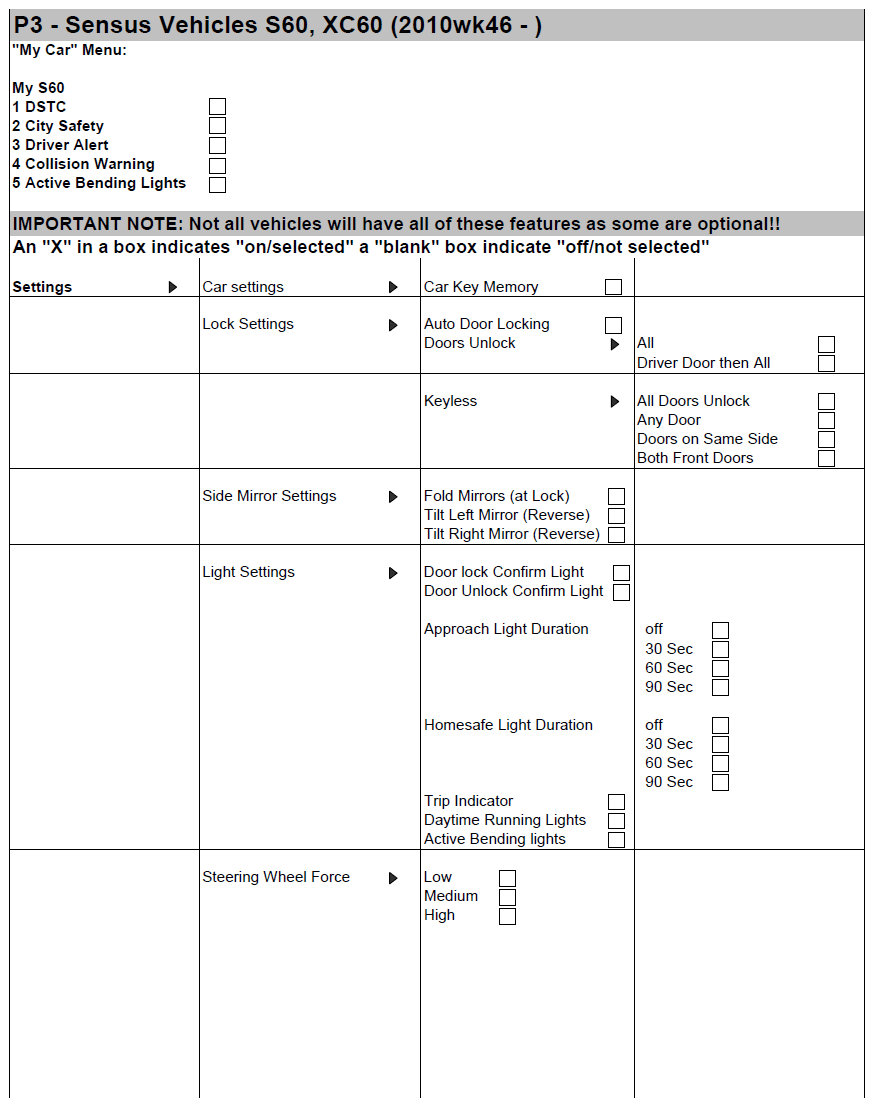

| P3_Sensus_Customer_Settings.pdf | 0.0173 MB |
| P5_SPA_Customer_Settings.pdf | 0.0163 MB |
| P5_SPA_SW_Guide.pdf | 0.3945 MB |
VEHICLE TYPE
VEHICLE TYPE
| Type | Eng | Eng Desc | Sales | Body | Gear | Steer | Model Year | Plant | Chassis range | Struc Week Range |
|---|---|---|---|---|---|---|---|---|---|---|
| 124 | 2013-9999 | - | 0-0 | |||||||
| 134 | 2013-9999 | - | 0-0 | |||||||
| 136 | 2013-9999 | - | 0-0 | |||||||
| 137 | 2016-9999 | - | 0-0 | |||||||
| 138 | 2016-9999 | - | 0-0 | |||||||
| 155 | 2013-9999 | - | 0-0 | |||||||
| 156 | 2013-9999 | - | 0-0 | |||||||
| 157 | 2015-9999 | - | 0-0 | |||||||
| 234 | 2017-9999 | - | 0-0 | |||||||
| 256 | 2016-9999 | - | 0-0 | |||||||
| 275 | 2013-9999 | - | 0-0 | |||||||
| 533 | 2013-9999 | - | 0-0 | |||||||
| 542 | 2013-9999 | - | 0-0 |
CSC CUSTOMER SYMPTOM CODES
CSC CUSTOMER SYMPTOM CODES
| Code | Description |
|---|---|
| 2V | Technician information/Software/Vehicle communication/Not for warranty use |
VST OPERATION NUMBER
-
DTC DIAGNOSTIC TROUBLE CODES
Rows beginning with * are modified
NOTE:
If using a printed copy of this Technical Journal, first check for the latest online version.
TEXT
-
DESCRIPTION
This Journal is a guide for performing Software Downloads.
SERVICE

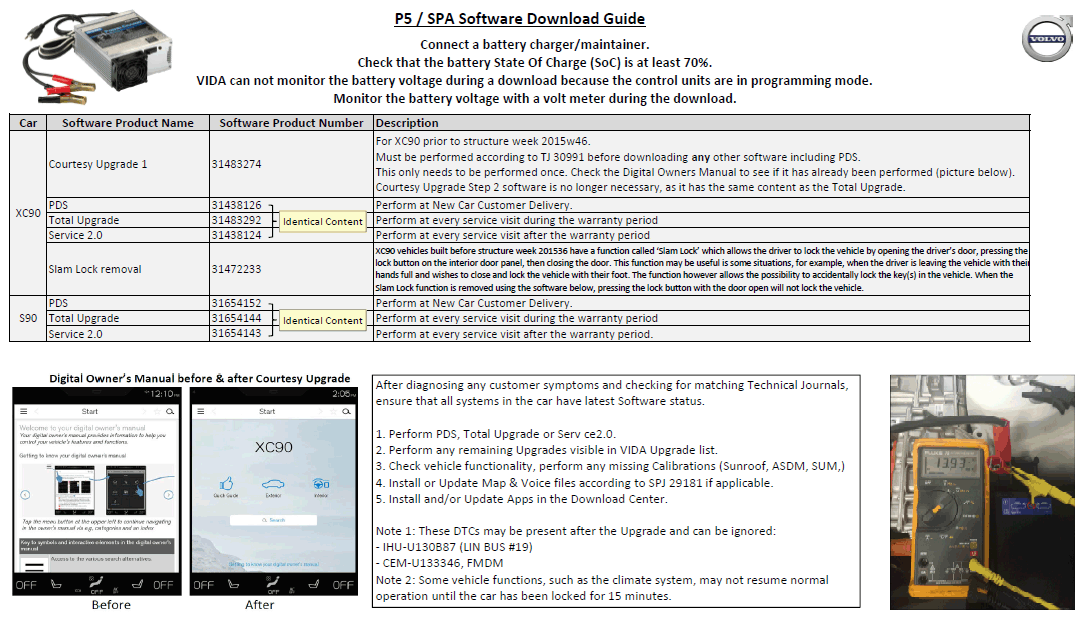

See attached guide for relevant P5/SPA Software Download information. P5_SPA_SW_Guide.pdf
See VIDA Software tab for all other vehicles.

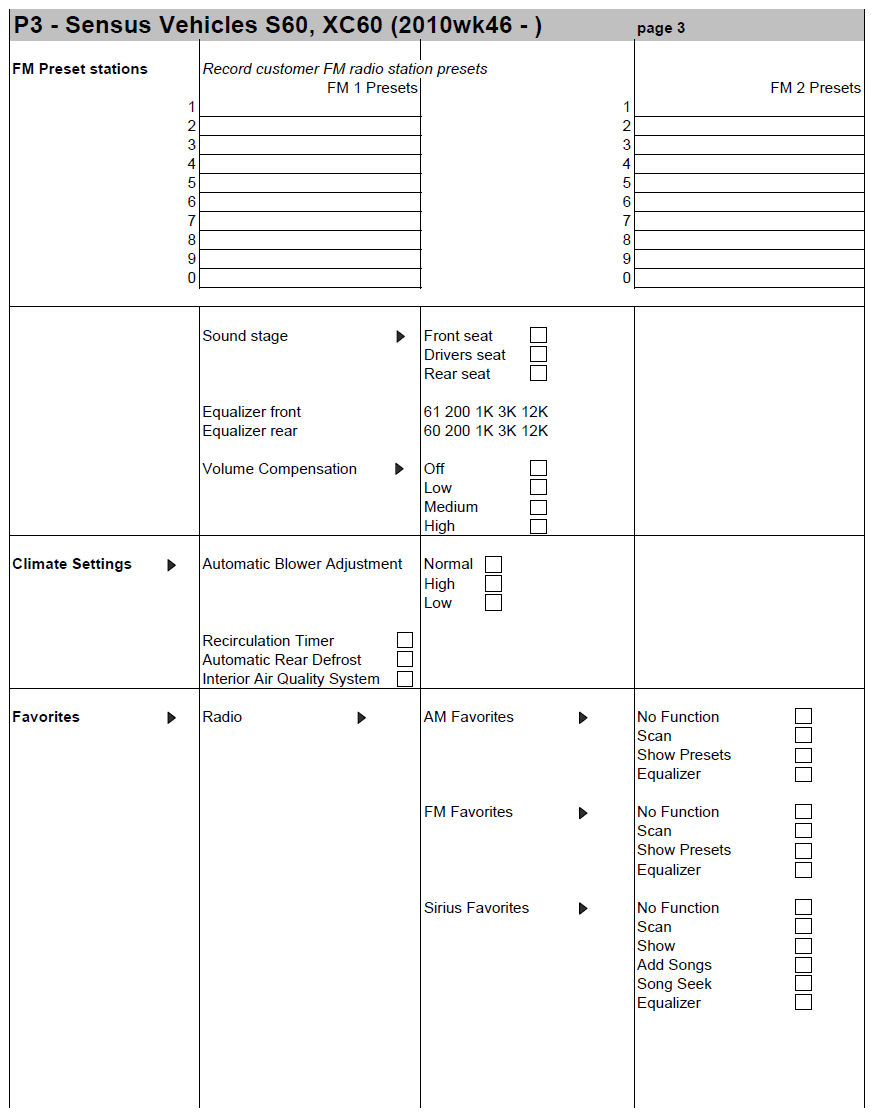

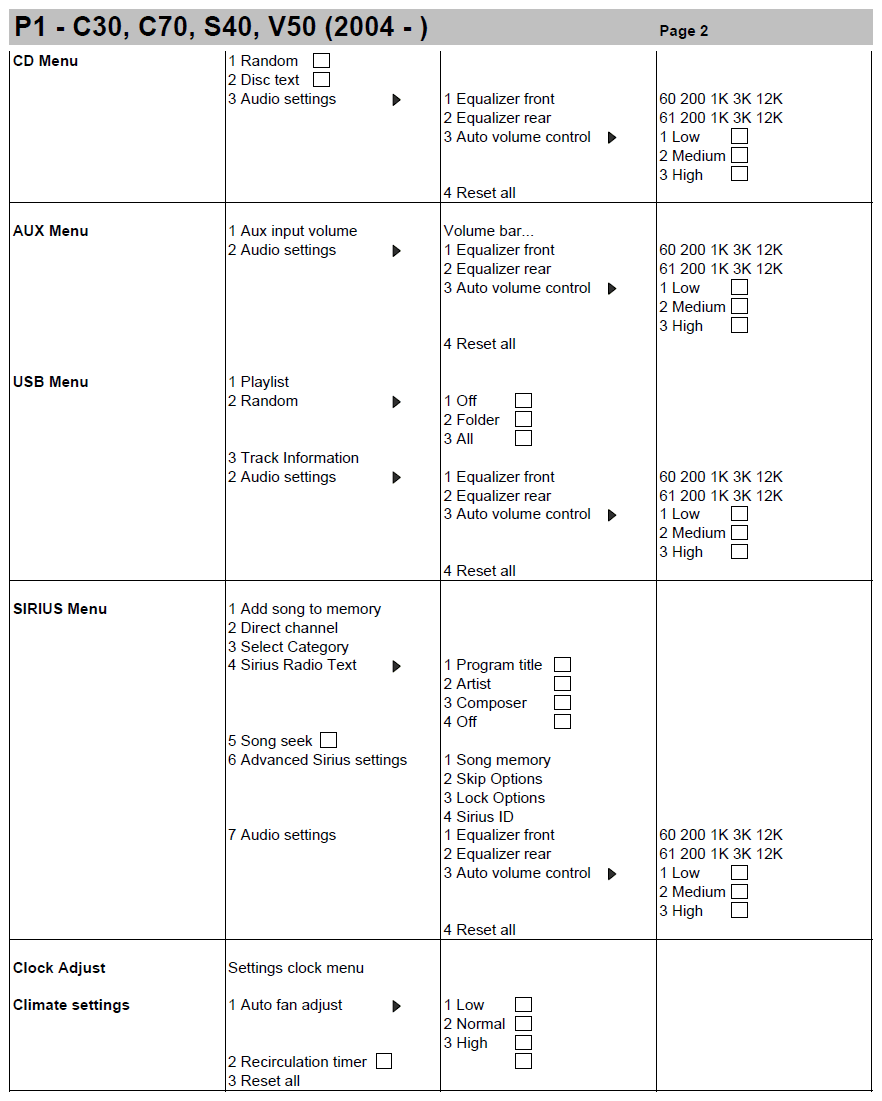

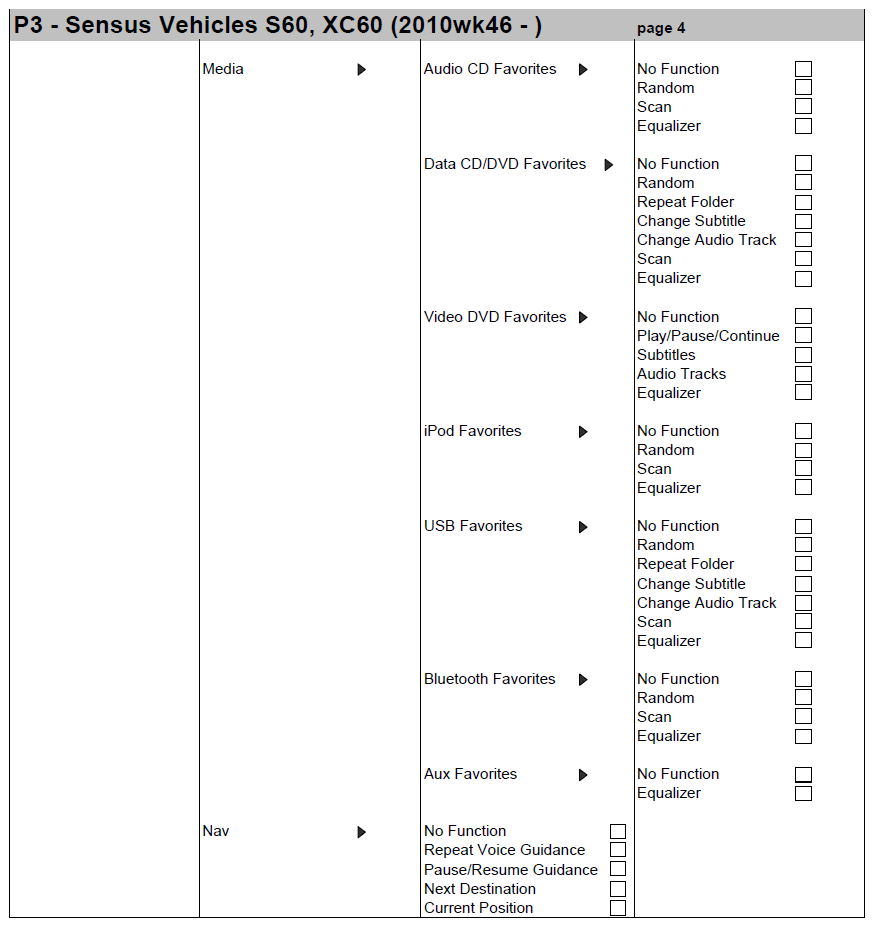

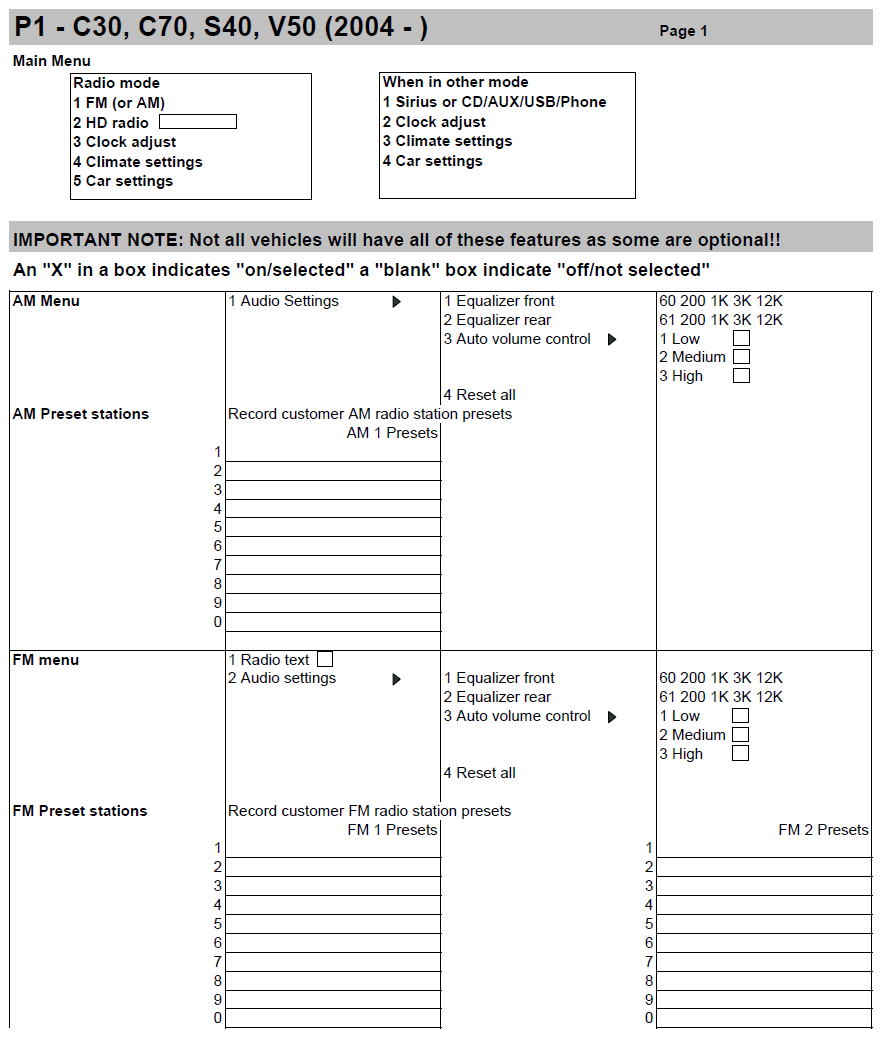

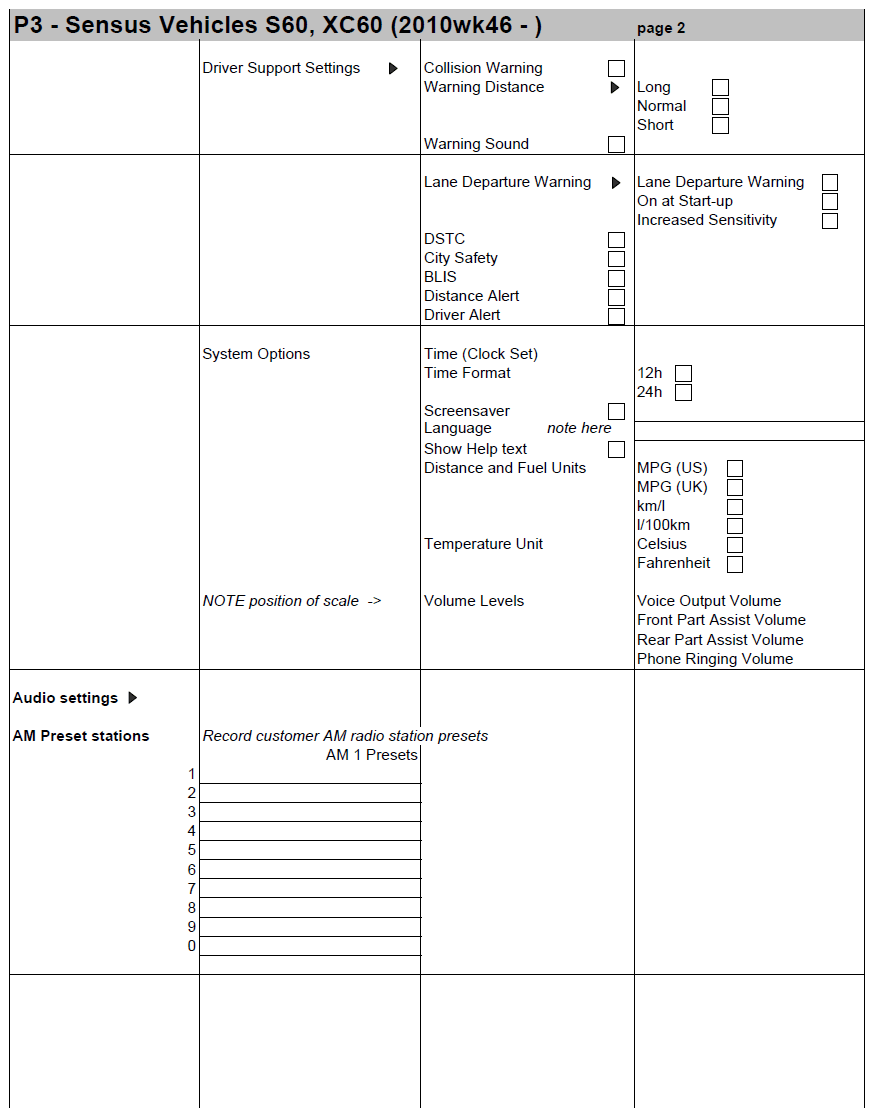

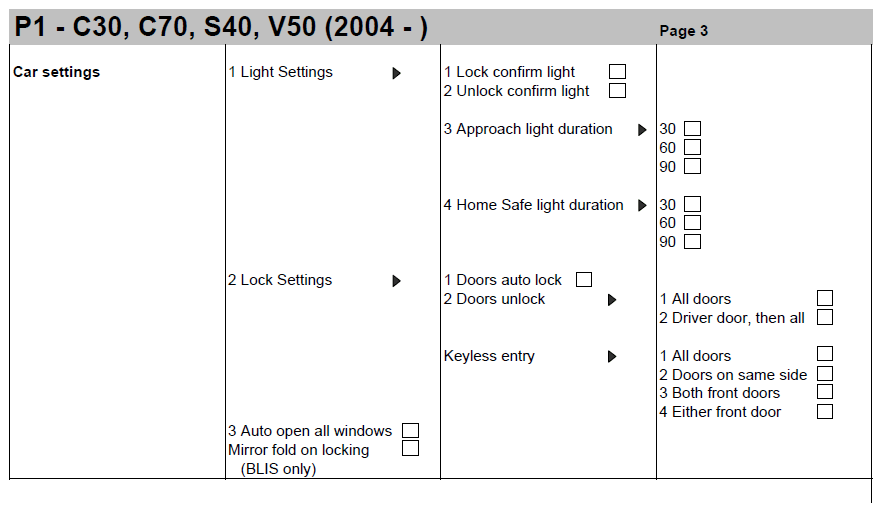

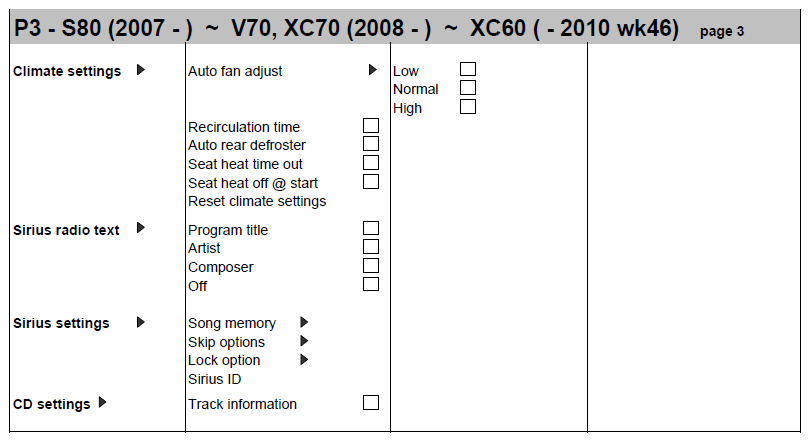

The attached checklists can be used for restoring customer settings, where applicable.
VEHICLE REPORT
N/A
Example of P1 block offsets
P1 BLOCK OFFSET VALUE
| The following settings are accomplished with VIDA/Vehicle communication/Node XXX/advanced | |
|---|---|
| CEM | Value |
| Programming of global opening of windows (market dependent) | |
| Programming of rear window wiper when reversing | |
| Setting clock deviation | |
| DIM | |
| Unit for temperature | |
| Trip computer unit | |
| 12 or 24 hour display on the clock | |
| Parking brake warning On/Off | |
| Audible acknowledgement signal, seat belt reminder On/Off. | |
| Programming seatbelt reminder in backseat | |
| Programming of triggering conditions for audible signal, seatbelt reminder | |
| Instrument lighting at unlocking Activated/Not activated | |
| CCM | |
| Programming the seat temperature | |
| PSL | |
| Seat memory on/off | |

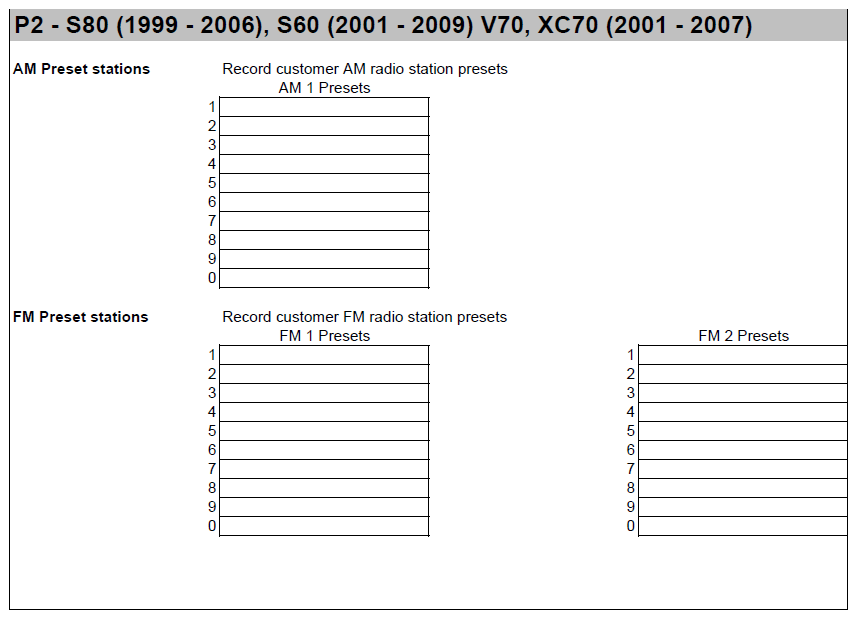

P2 BLOCK OFFSET VALUE
| The following settings are accomplished with VIDA/Vehicle communication/Node XXX/advanced | |
|---|---|
| CEM | Value |
| 1. Home safe light | |
| 2. Daytime running lamps | |
| 3. Tailgate wiper (5 door models) | |
| 4. Time delay, locking the fuel tank filler cover | |
| 5. Warning for low beam position (Bi-Xenon). | |
| 6. Programming of 3 flash sequence | |
| UEM | |
| 1. Length of time for courtesy lighting | |
| 2. Amount of dimmer for inner rear-view mirror. | |
| DDM | |
| Programming the remote control setting (seat memory off/on) | |
| CCM | |
| Afterblow | |
| Floor and defroster air distribution, residual heat. | |
| Setting seat heater temp. | |
| PSM | |
| seat and mirror memory off/on | |

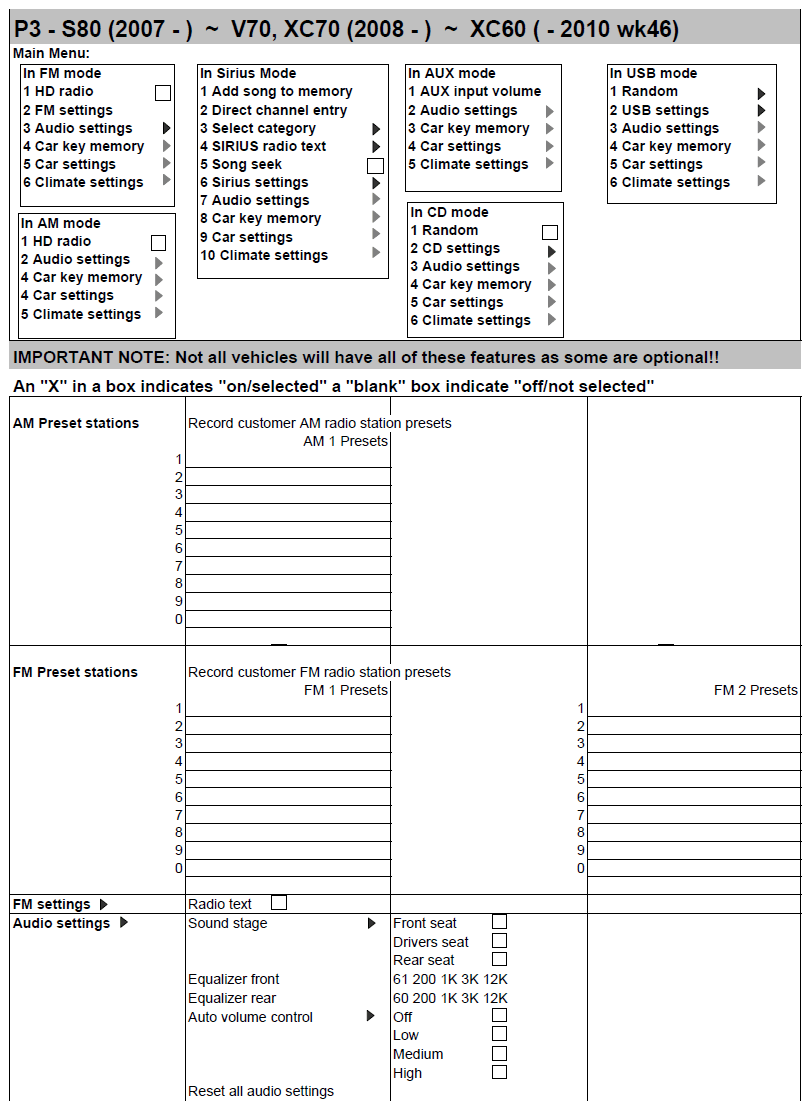

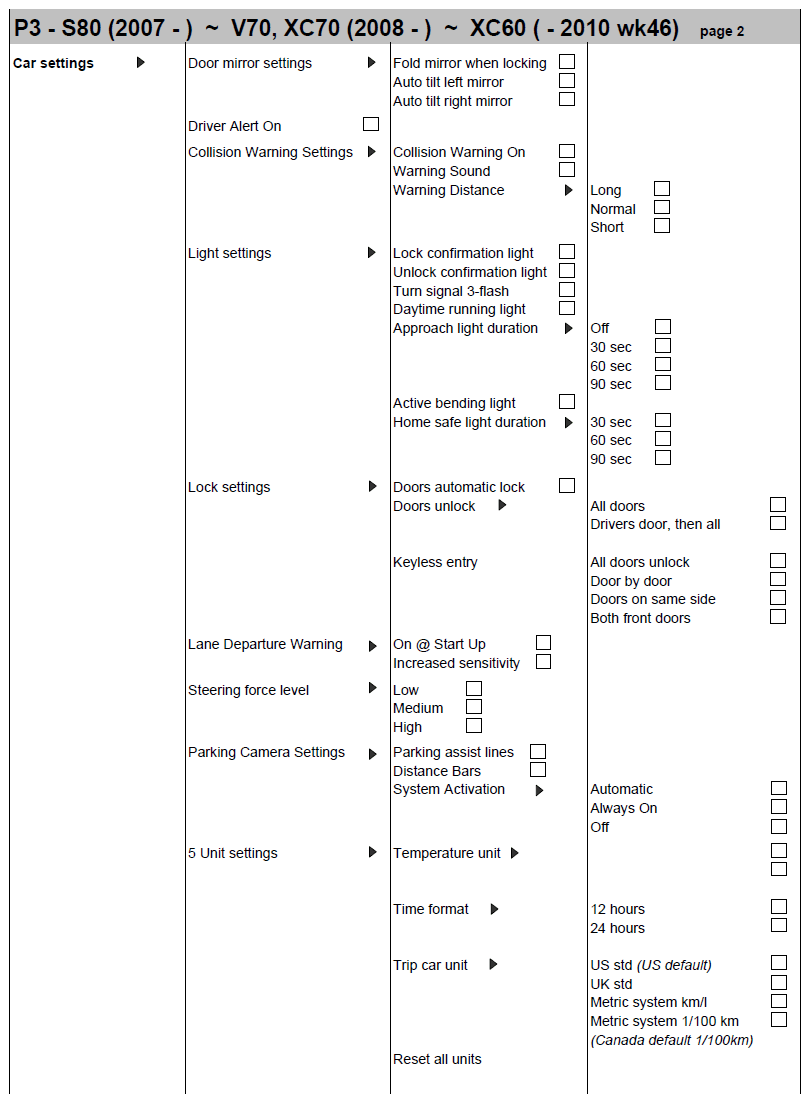

Example of P3 (non-Sensus) block offsets
P3 (NON-SENSUS) BLOCK OFFSET VALUE
| The following settings are accomplished with VIDA/Vehicle communication/Node XXX/advanced | |
|---|---|
| "block offsets" | Value (on/off) |
| Climate Control | |
| Seat heating. | |
| Seat ventilation. | |
| Time setting seat heating | |
XC90 BLOCK OFFSET VALUE
| The following settings are accomplished with VIDA/Vehicle communication/Node XXX/advanced | |
|---|---|
| CEM | Value |
| 1. Home safe light | |
| 2. Daytime running lamps | |
| 3. Tailgate wiper (5 door models) | |
| 4. Time delay, locking the fuel tank filler cover | |
| 5. Warning for low beam position (Bi-Xenon). | |
| 6. Programming of 3 flash sequence | |
| UEM | |
| 1. Length of time for courtesy lighting | |
| 2. Amount of dimmer for inner rear-view mirror. | |
| DDM | |
| Programming the remote control setting (seat memory off/on) | |
| CCM | |
| Afterblow | |
| Floor and defroster air distribution, residual heat. | |
| Setting seat heater temp. | |
| PSM | |
| seat and mirror memory off/on | |
