Collision - Body Panel Replacement: A-Pillar

Follow the instructions regarding welding; refer to WELDING, GENERAL .

Remove the side section; refer to SIDE SECTION, EXPOSING .

Follow the instructions regarding body side; refer to BODY SIDE .

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

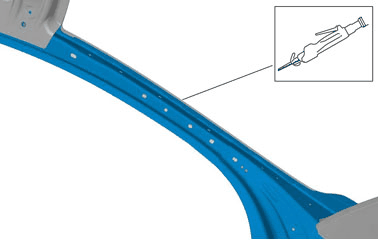

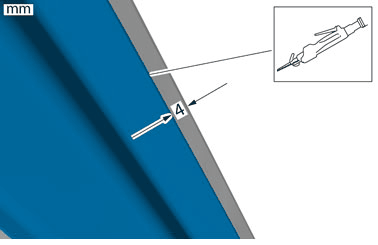

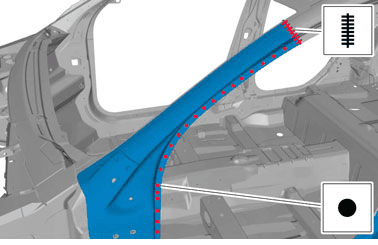

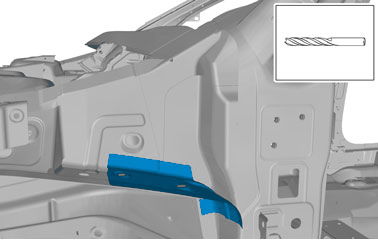

Fig 1: A-Pillar Cut Line Measurements And Locations

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

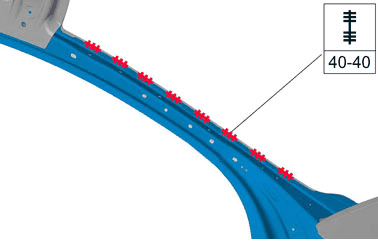

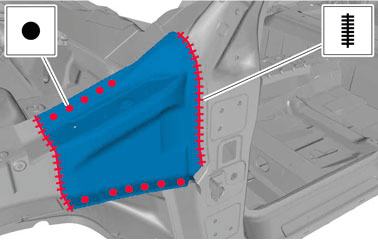

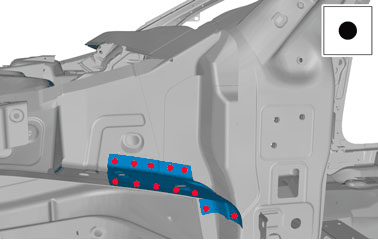

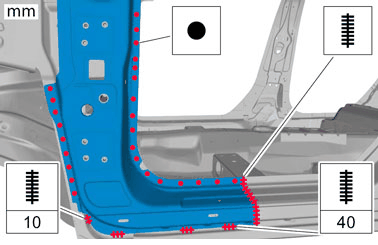

Fig 2: A-Pillar Weld Specifications And Locations (1 Of 2)

Courtesy of VOLVO CARS CORPORATION

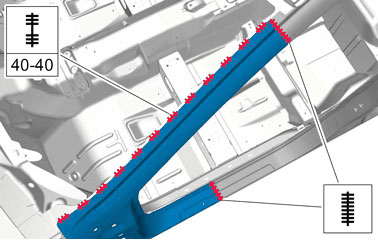

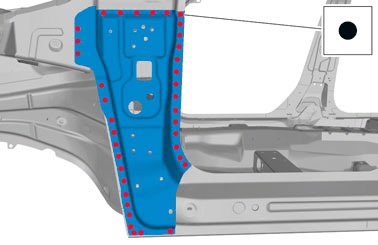

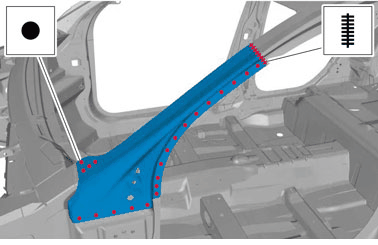

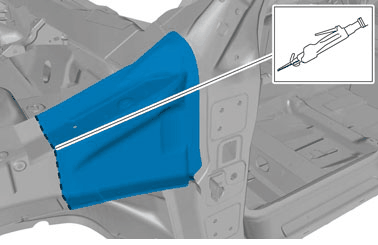

Fig 3: A-Pillar Weld Specifications And Locations (2 Of 2)

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Follow the instructions regarding body sealant; refer to BODY SEAL, SEALING DIAGRAM .

Follow the instructions regarding corrosion protection; refer to RUSTPROOFING .

See information about paint; refer to PAINT .

Assemble side; refer to SIDE SECTION, EXPOSING .
