Design And Function: Function

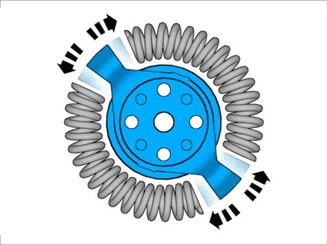

Inside the releaser, a spring assembly takes up the forces of the combustion pulsations. Through indentations in the housing as well as the central flange, the outer part is allowed to flex approx. 25° back and forth with the help of the spring assembly. Including the distance the springs are compressed, the two main parts can rotate approximately 65° to each other.
