Transmission Control Module (TCM) [2016, B5254T12, TF-80SC AWD]: Removal

Courtesy of VOLVO CARS CORPORATION

Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING

Courtesy of VOLVO CARS CORPORATION

Torque:  Gear selector mechanism (nut), 16Nm

Courtesy of VOLVO CARS CORPORATION

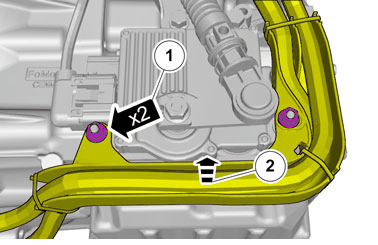

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION
