Engine Block, Installing Components [2007-2010, B6324S, TF-80SC AWD]

Courtesy of VOLVO CARS CORPORATION

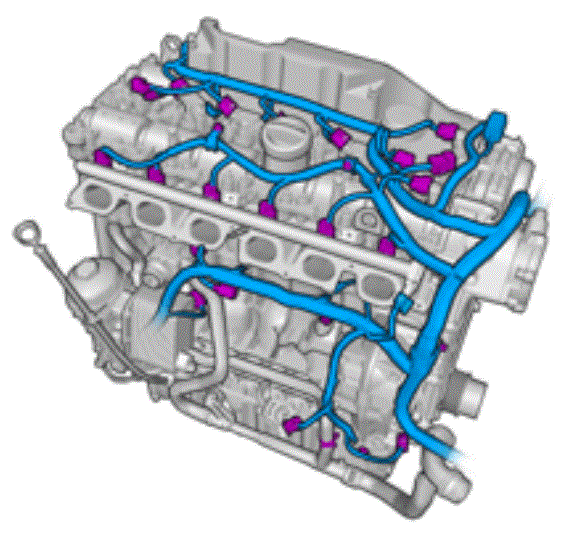

Install the following items:

1. Torque:  M6, 10Nm
2. Torque:  M6, 10Nm
3. Torque:  M6, 10Nm
4. Torque:  M6, 10Nm
5. Torque:  M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

Install the following items:

1. Torque:  M6, 10Nm
2. Torque:  M7, 17Nm
3. Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Torque:  M7, 17Nm

Courtesy of VOLVO CARS CORPORATION

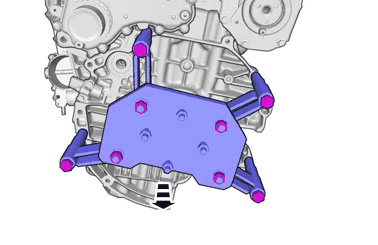

Install carrier plate, refer to: CARRIER PLATE

Install the transmission, refer to: TRANSMISSION

Courtesy of VOLVO CARS CORPORATION

Install the following items:

1. Torque:  M6, 10Nm
2. Torque:  M8, 24Nm
3. Torque:  M10, 50Nm
