Ignition Lock [2007-2011]: Removal

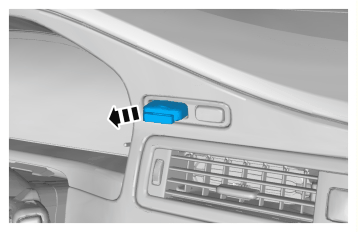

GLL153078

Courtesy of VOLVO CARS CORPORATION

Remove the combined instrument panel, refer to: COMBINED INSTRUMENT PANEL

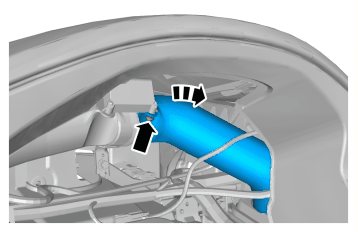

GLL153083

Courtesy of VOLVO CARS CORPORATION

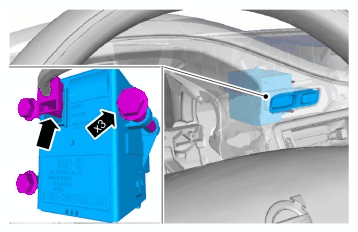

GLL153088

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the component terminals are not bent or damaged.
