Diagnostic Trouble Code (DTC) Information FSM-U300063
Condition

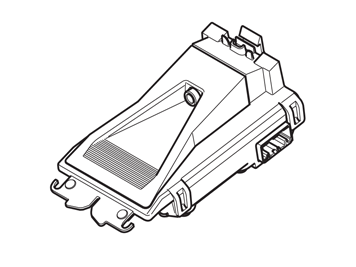

Forward Sensing Module (FSM) checks internal components and functions in the control module.
The diagnostic trouble code (DTC) is stored if the control module detects that:
- Internal signals outside permitted range occur for more than 3 seconds.
The control module's test for the diagnostic trouble code (DTC) starts in the event of:
- Engine running.
NOTE:
The control module can only detect the fault once the test has been started and the diagnostic trouble code (DTC) is stored when the conditions are met.
Substitute Value
- None.
Possible Source
- Internal fault in the Forward Sensing Module (FSM).
Fault symptom[s]
- PD, Brake pedal/Excessive "brake pedal effort" required
- 1T, Warning lights and chimes/Front monitoring/Active safety indication/no indication
- CJ, Warning lights and chimes/Bulb failure indication/no indication
- IV, Text window and warning symbol/Text message
