Diagnostic Trouble Code (DTC) Information PAC-U201A51

Condition

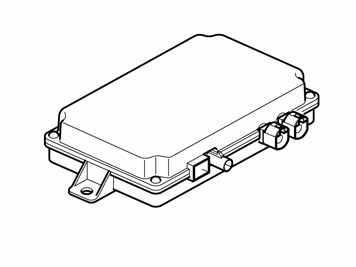

Parking Assistance Camera (PAC) checks if there is a local configuration file.

The diagnostic trouble code is stored if the control module detects:

Problem with software in Parking Assistance Camera (PAC).
Internal components do not work.

The control module's test for the diagnostic trouble code (DTC) starts in the event of:

Ignition switch position II.

NOTE:

The control module can only detect the fault once the test has been started and the diagnostic trouble code (DTC) is stored when the conditions are met.

Courtesy of VOLVO CARS CORPORATION

Substitute Value

None.

Possible Source

Software missing/wrong software in Parking Assistance Camera (PAC).
Damaged Parking Assistance Camera (PAC).

Fault symptom[s]

2X, Park assist camera/Does not work
