Lambda Probe [2014-2016, B5254T12]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
 Courtesy of VOLVO CARS CORPORATION
|
 Courtesy of VOLVO CARS CORPORATION
|

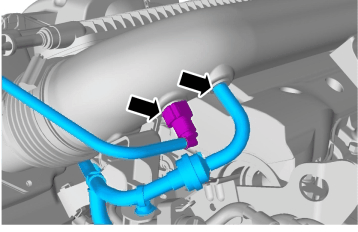

Torque:
M6, 10Nm
 Courtesy of VOLVO CARS CORPORATION
|
 Courtesy of VOLVO CARS CORPORATION
|
 Courtesy of VOLVO CARS CORPORATION
|

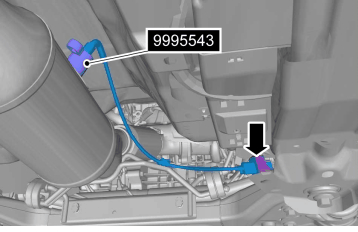

Special Tool: 999 5543
Torque:
Catalyst monitor sensor, 45Nm
 Courtesy of VOLVO CARS CORPORATION
|

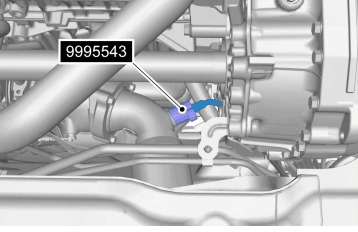

Special Tool: 999 5543
Torque:
Catalyst monitor sensor, 45Nm
