Fuse Box, Engine Service Mode: Removal

Courtesy of VOLVO CARS CORPORATION

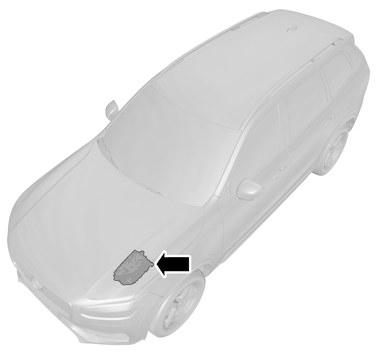

Set the vehicle to Inactive mode, described in user mode. Refer to: [USAGE MODE]

Remove the left front wheel. Refer to: [WHEELS]

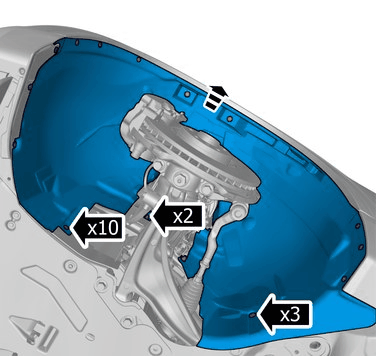

Courtesy of VOLVO CARS CORPORATION

Remove the fasteners.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

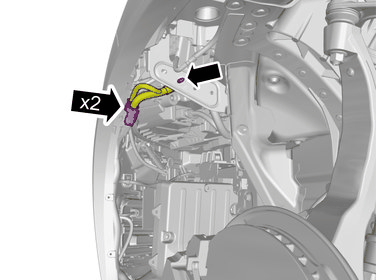

Connect the connectors.

Remove the cable harness clips.

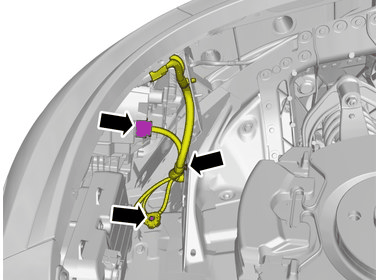

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

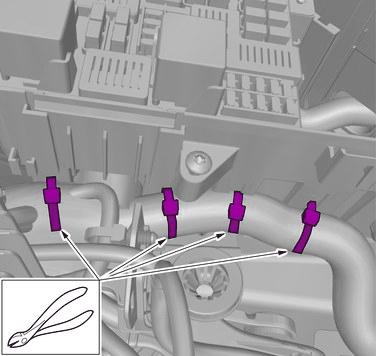

Remove the cable harness clips.

Remove the nut.

Torque:  M6, 10Nm

Remove the air filter housing. Refer to: [AIR CLEANER HOUSING]

Courtesy of VOLVO CARS CORPORATION

Release the locks.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

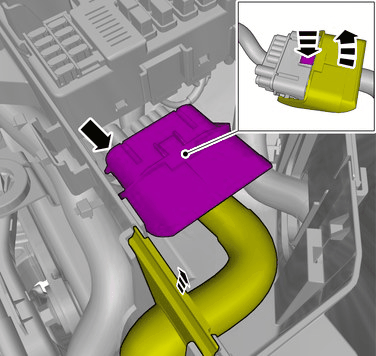

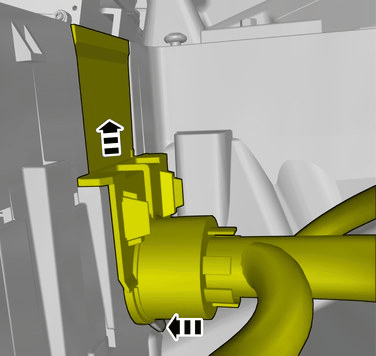

Release the lock.

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

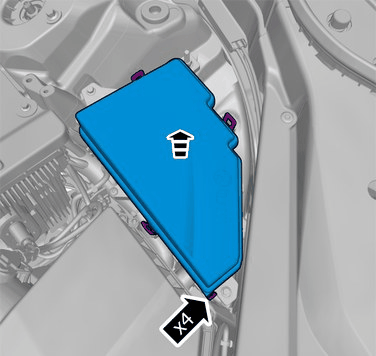

Remove the fasteners.

Courtesy of VOLVO CARS CORPORATION

Release the locks.

Loosen the marked detail/details.

Courtesy of VOLVO CARS CORPORATION

Release the lock.

Loosen the marked detail/details.

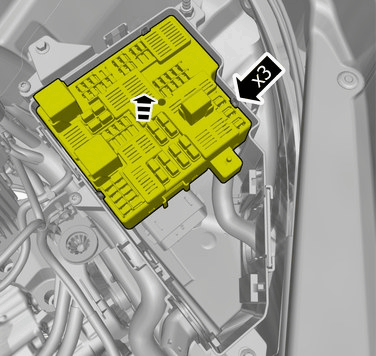

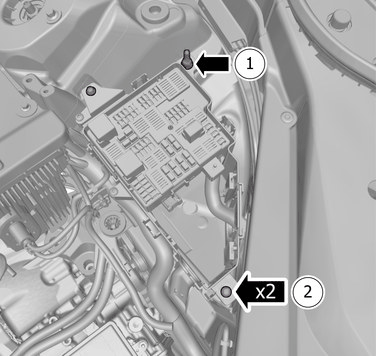

Courtesy of VOLVO CARS CORPORATION

Detach the following items:

1. Remove the screw.

   Torque:  M8, 24Nm

2. Remove the screws.

   Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Loosen the wiring harness or move it to the side.

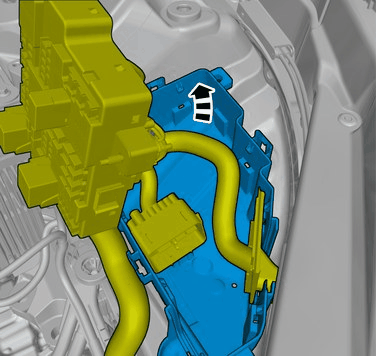

Courtesy of VOLVO CARS CORPORATION

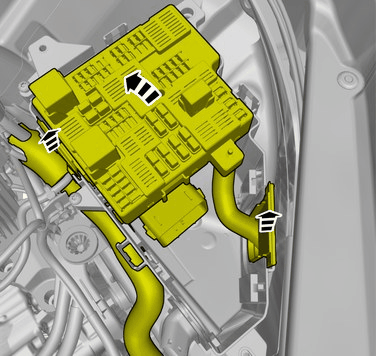

Remove the part carefully

Remove the marked part.
