Adaptive Headlight Module AHM [2016-2019]: Installation
 Courtesy of VOLVO CARS CORPORATION
|
CAUTION:

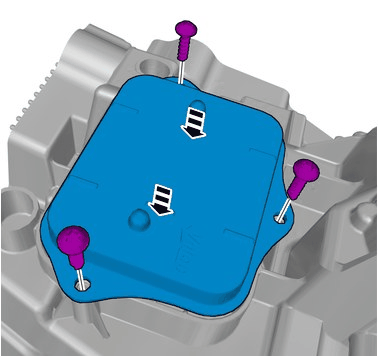

Make sure that equal pressure is applied to the full length of the component.
Tighten the bolts.
Torque:
Control module, to Headlamp, 1.2Nm
To install, reverse the removal procedure.
