Window Control Switch, Rear [2017-2022]: Removal

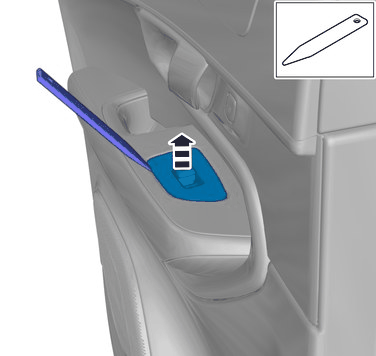

GLL1040666Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

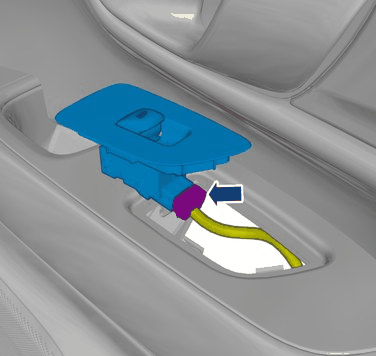

GLL1039132Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

GLL1015668Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Remove the marked part.
