Air Conditioning

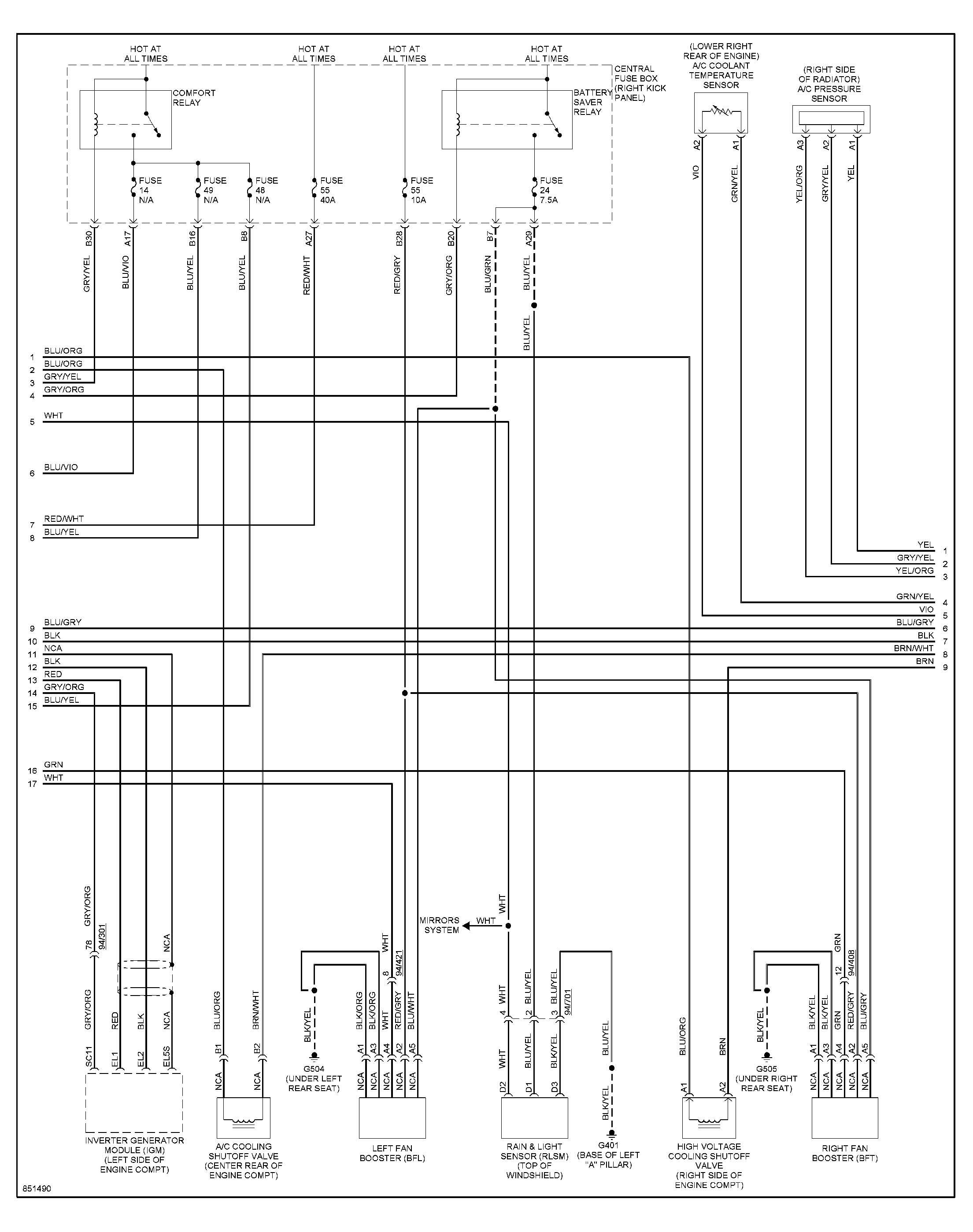

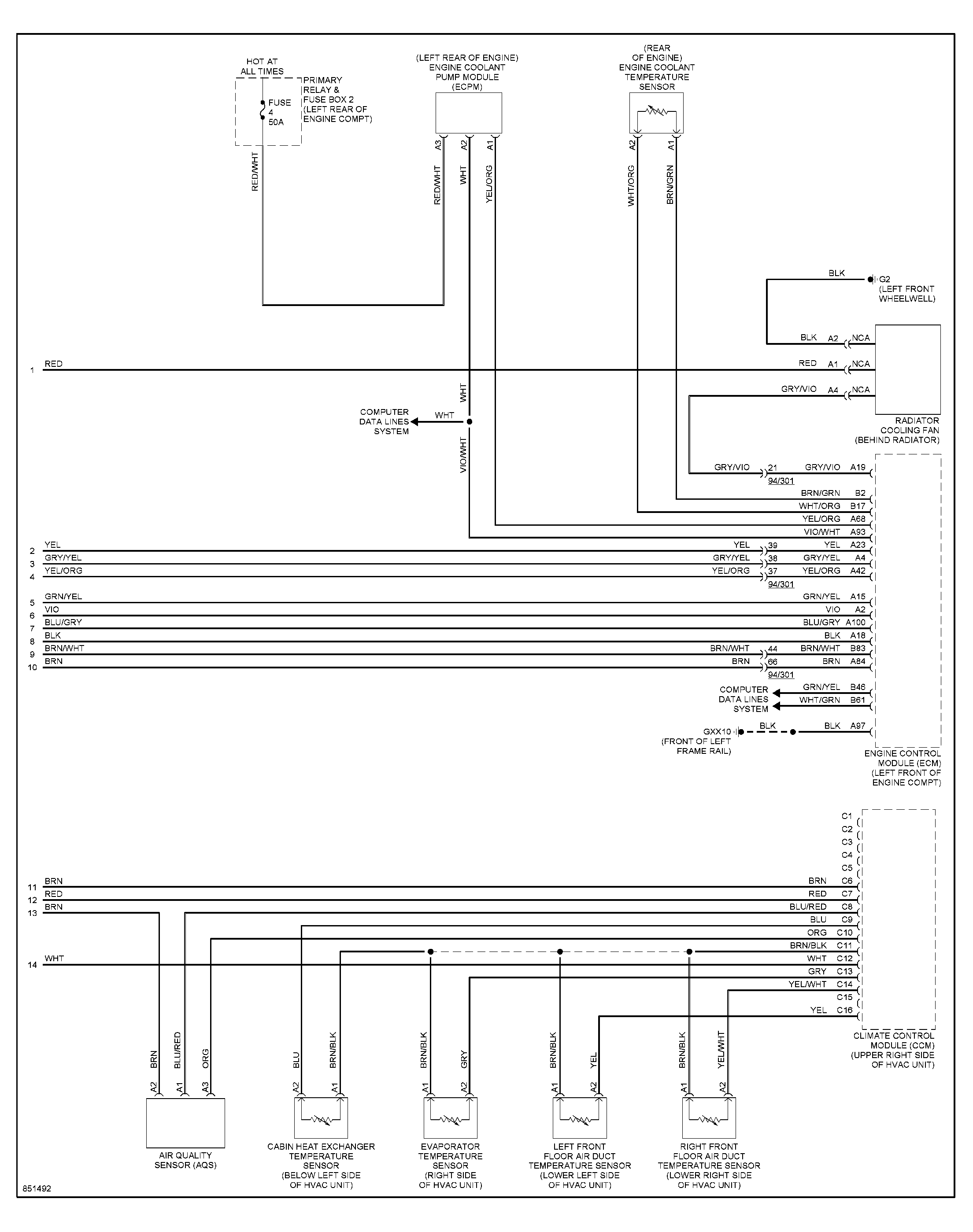

Fig 1: Automatic A/C Circuit, Except Hybrid (1 of 4)

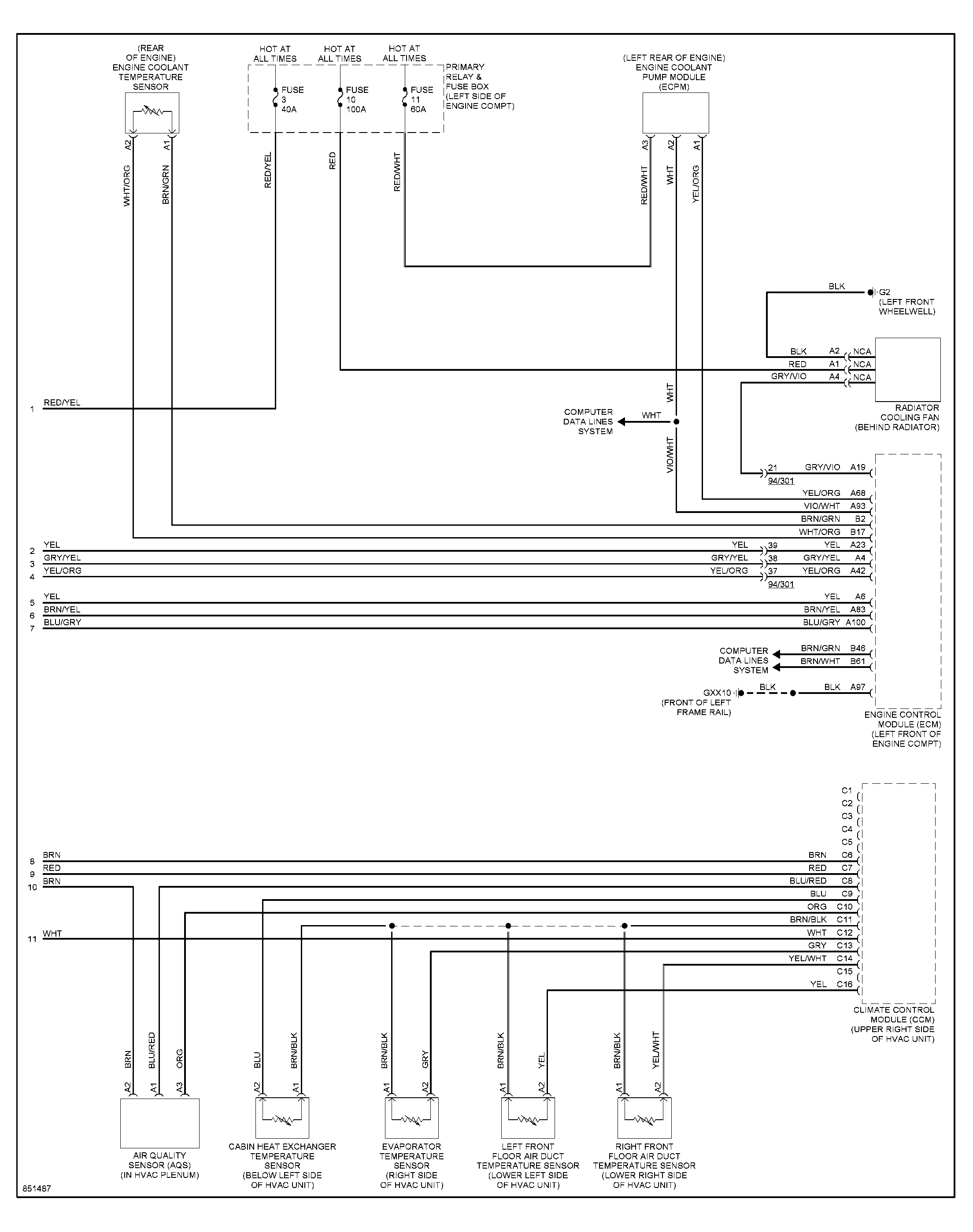

Fig 2: Automatic A/C Circuit, Except Hybrid (2 of 4)

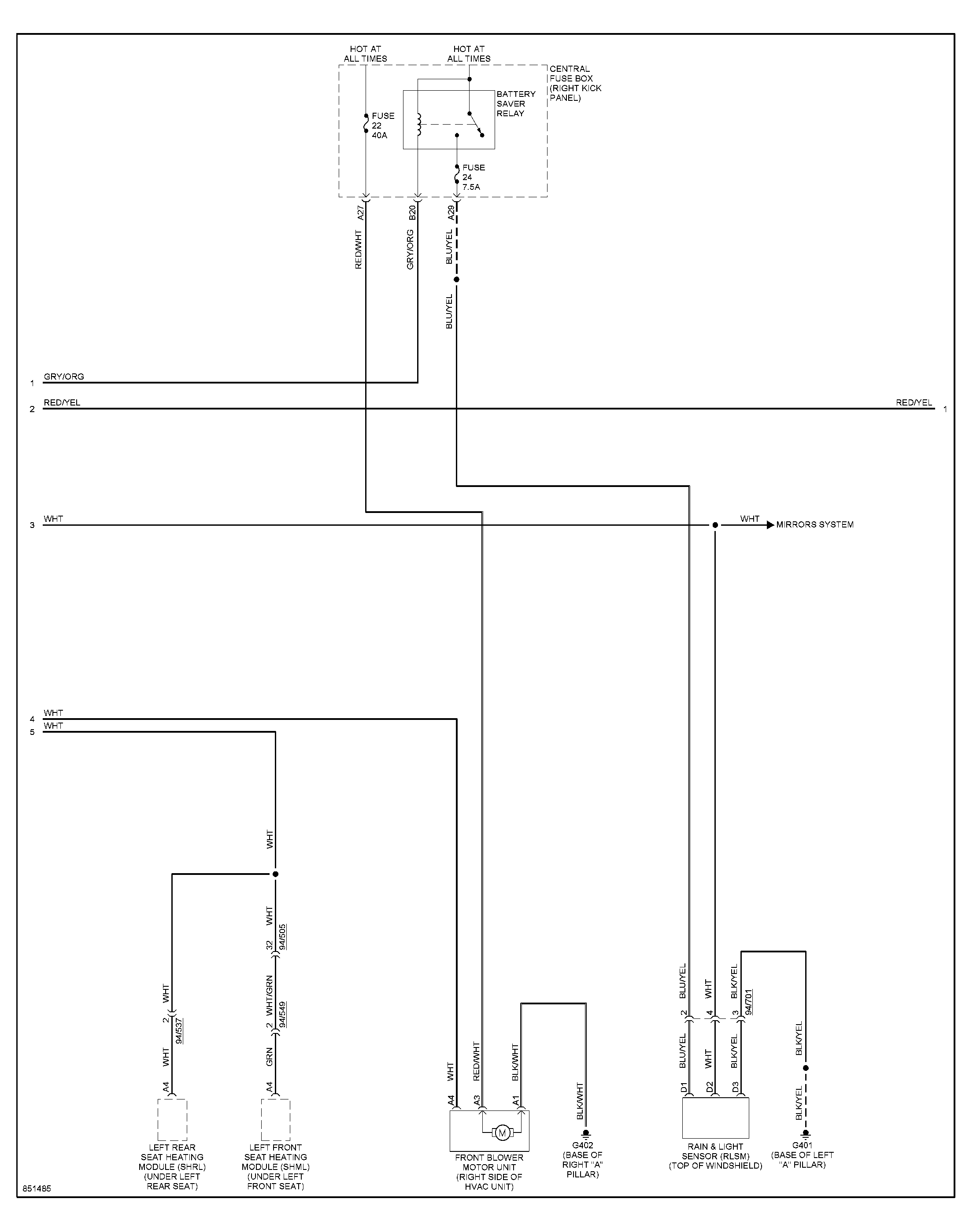

Fig 3: Automatic A/C Circuit, Except Hybrid (3 of 4)

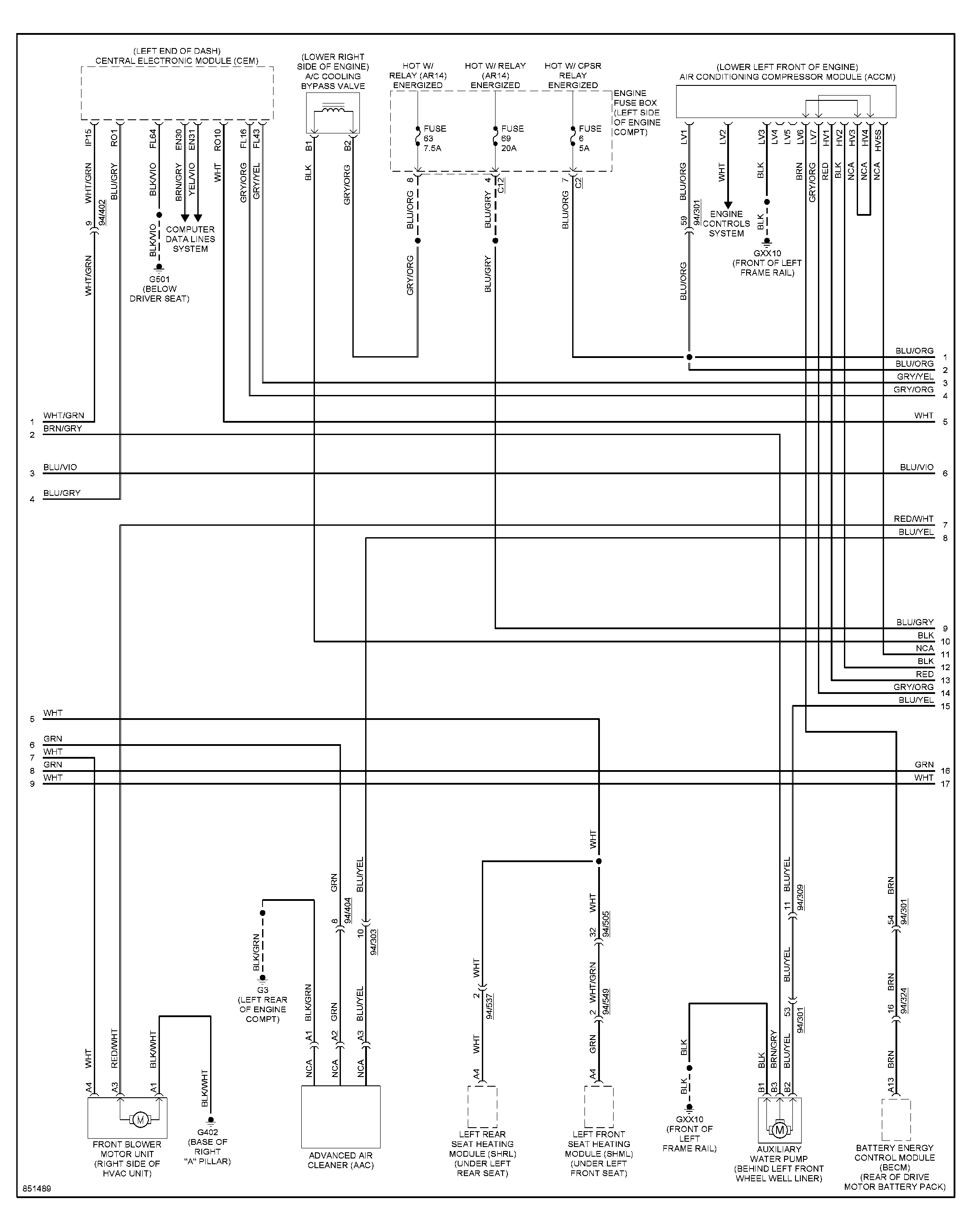

Fig 4: Automatic A/C Circuit, Except Hybrid (4 of 4)

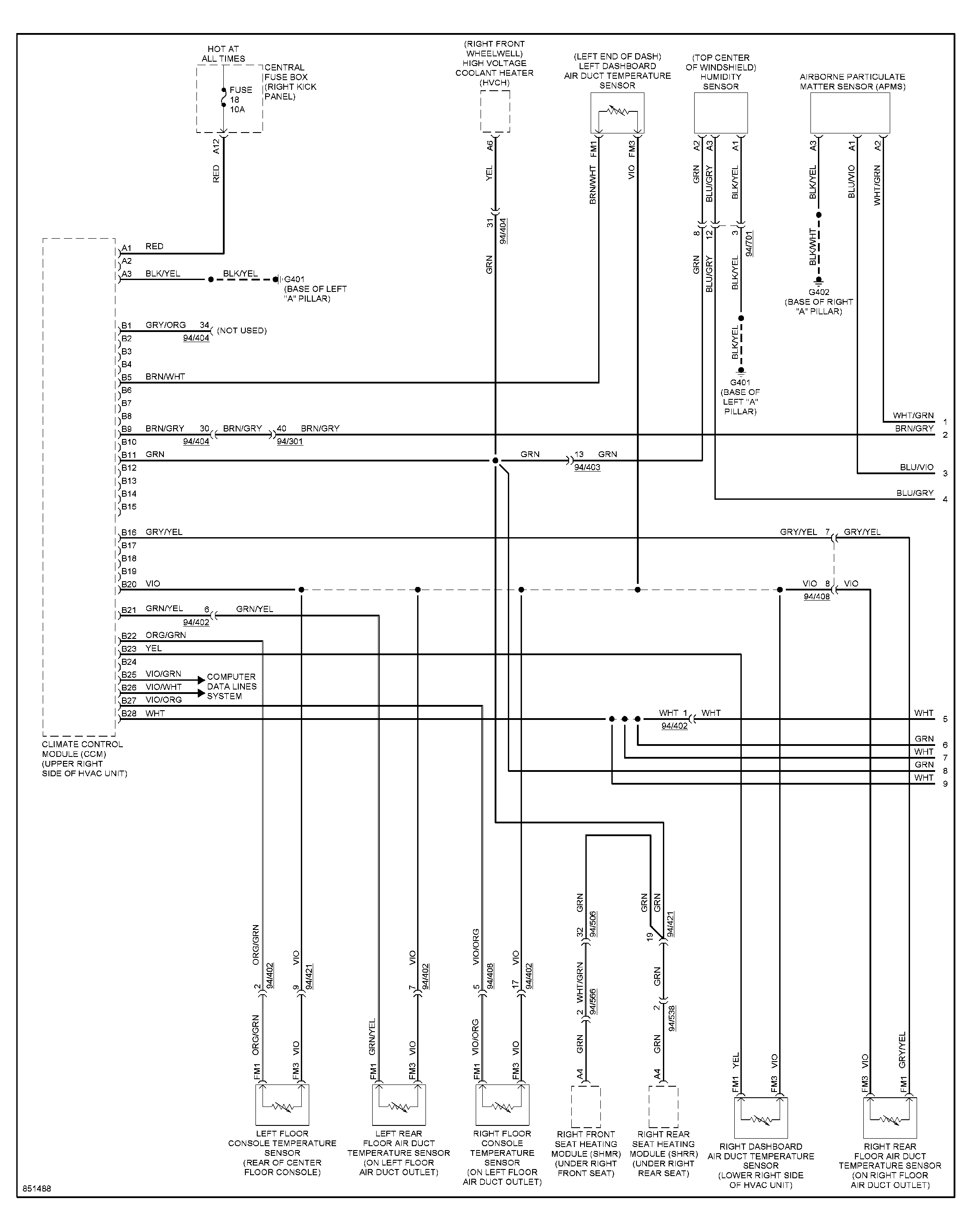

Fig 5: Automatic A/C Circuit, Hybrid (1 of 5)

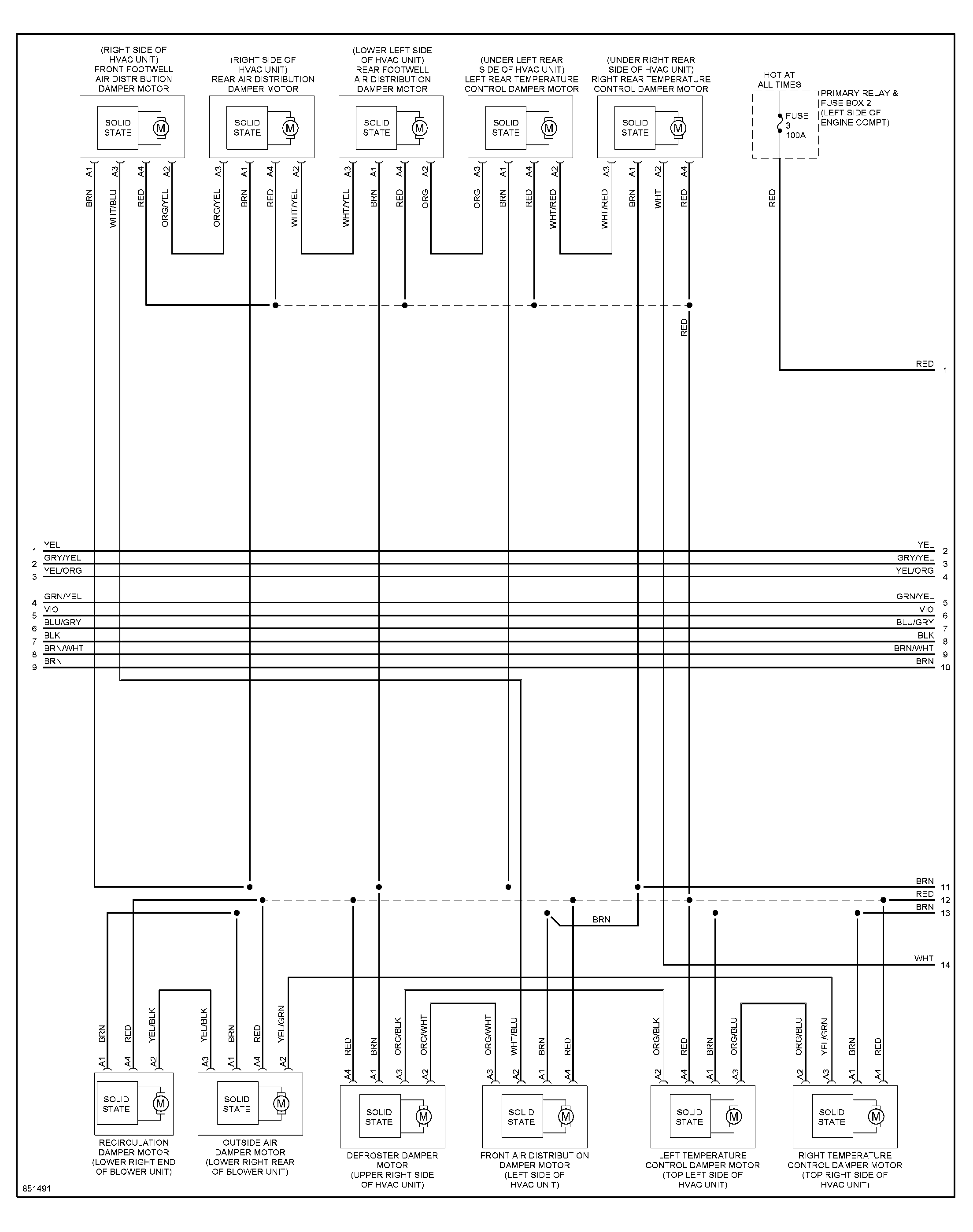

Fig 6: Automatic A/C Circuit, Hybrid (2 of 5)

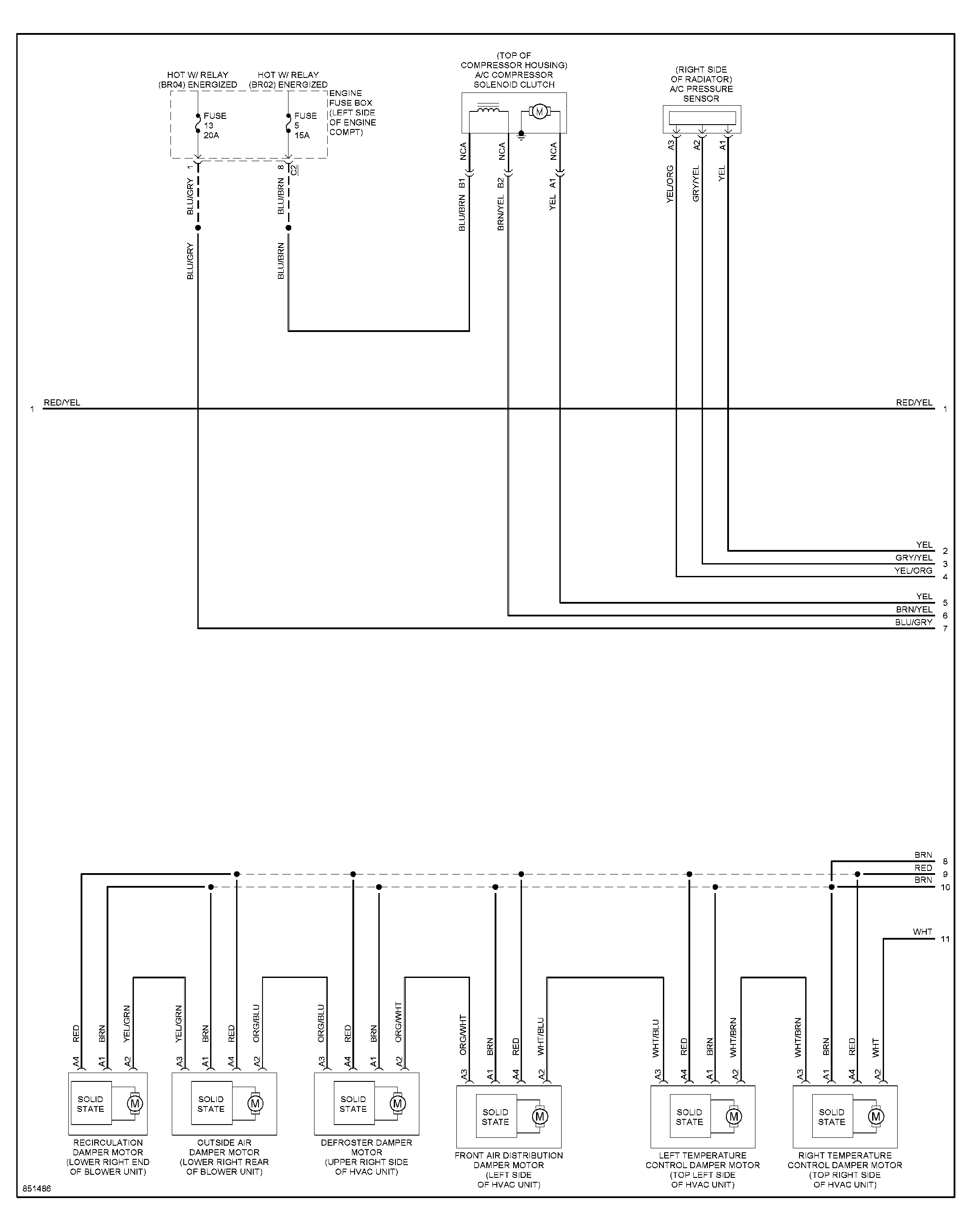

Fig 7: Automatic A/C Circuit, Hybrid (3 of 5)

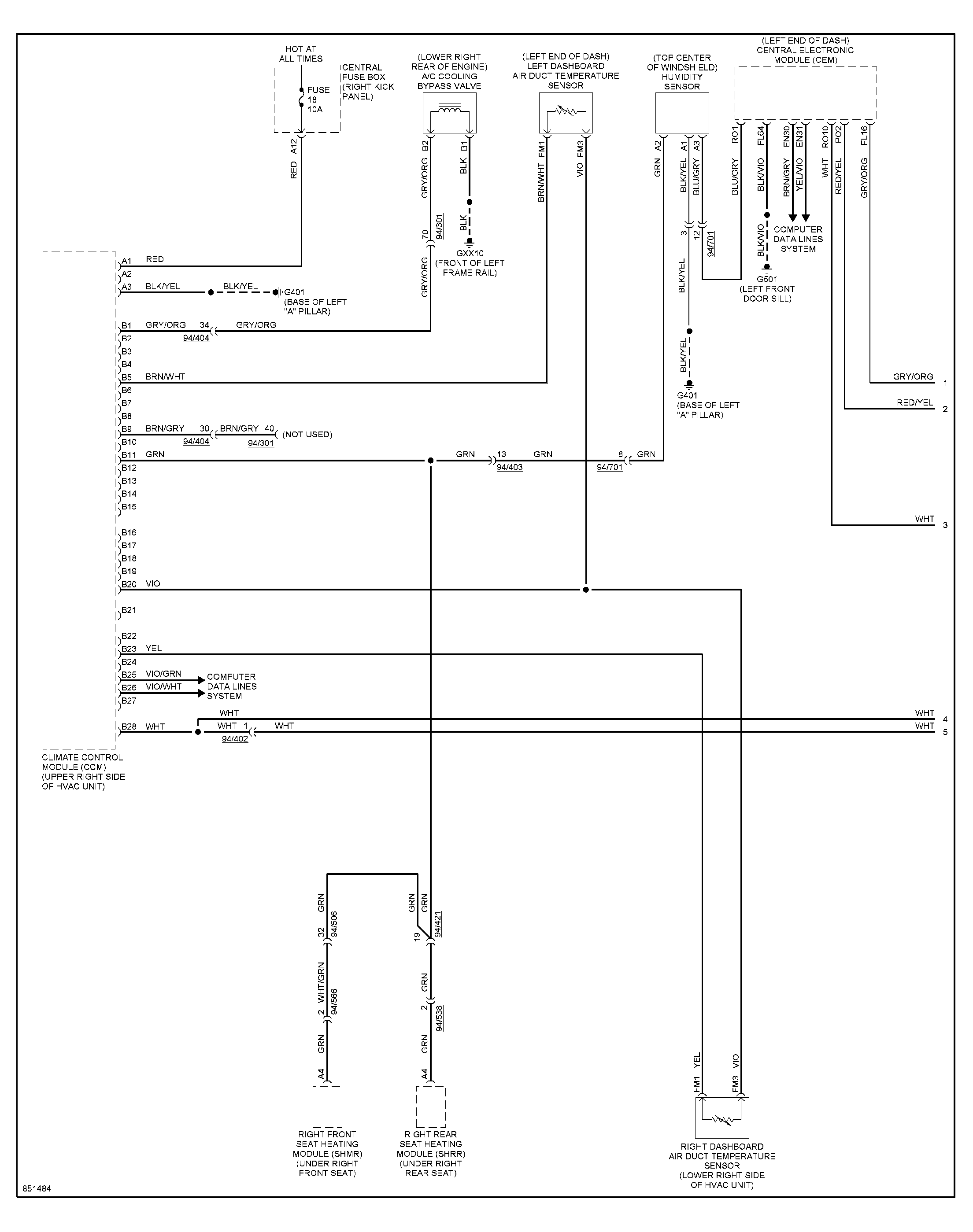

Fig 8: Automatic A/C Circuit, Hybrid (4 of 5)

Fig 9: Automatic A/C Circuit, Hybrid (5 of 5)
