System Wiring Diagrams: Navigation

Fig 1: Blind Spot Information System Circuit

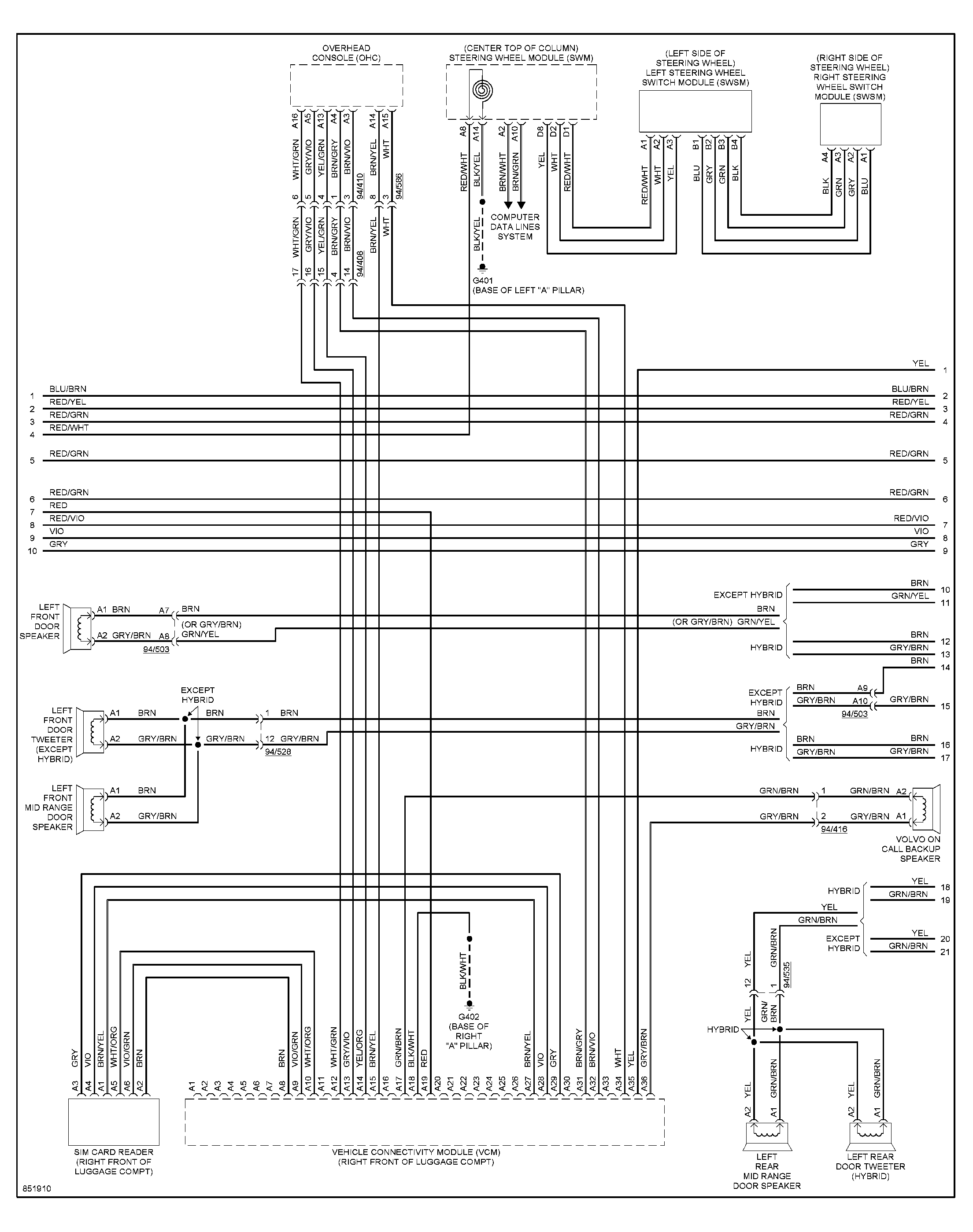

Fig 2: Navigation Circuit (1 of 5)

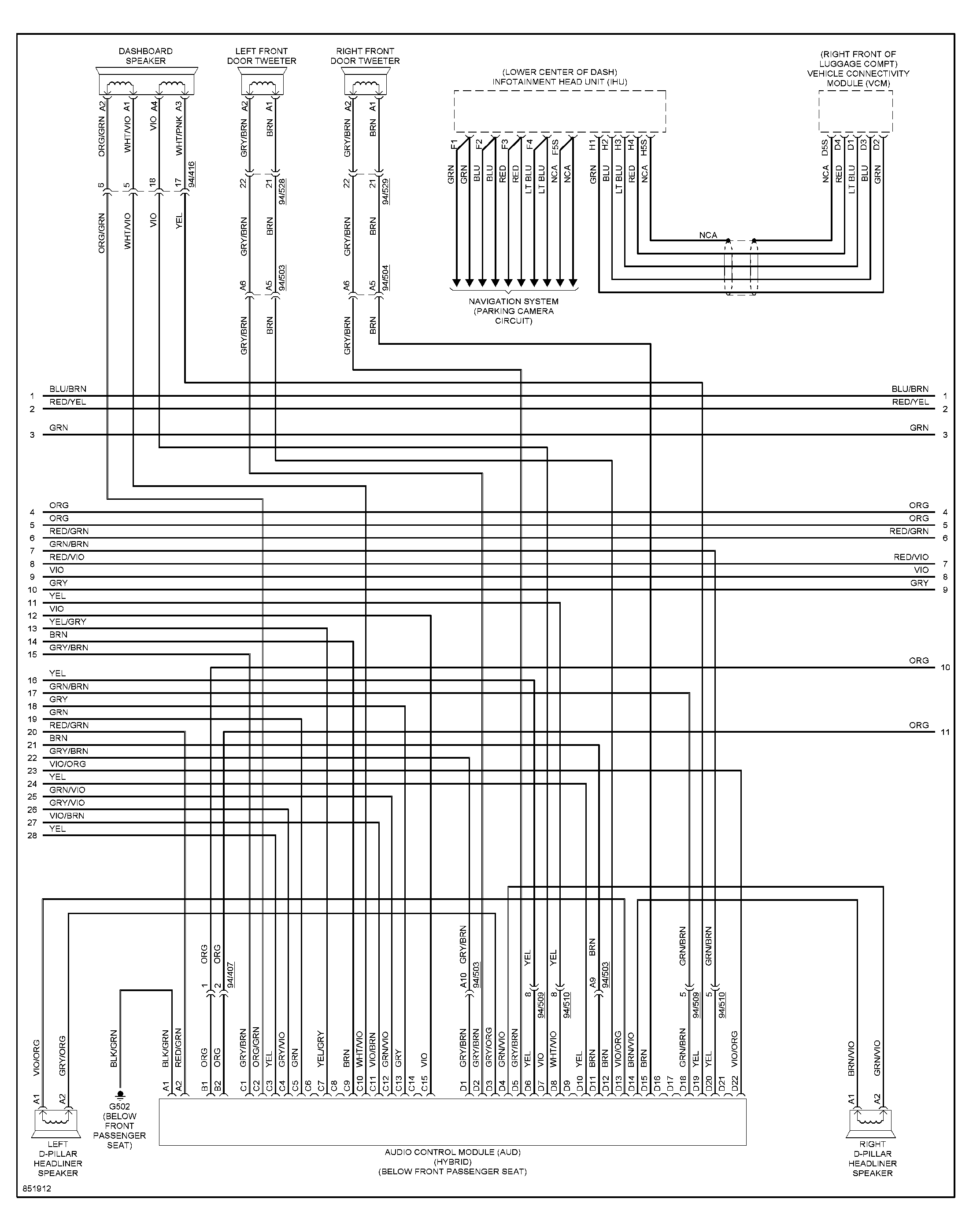

Fig 3: Navigation Circuit (2 of 5)

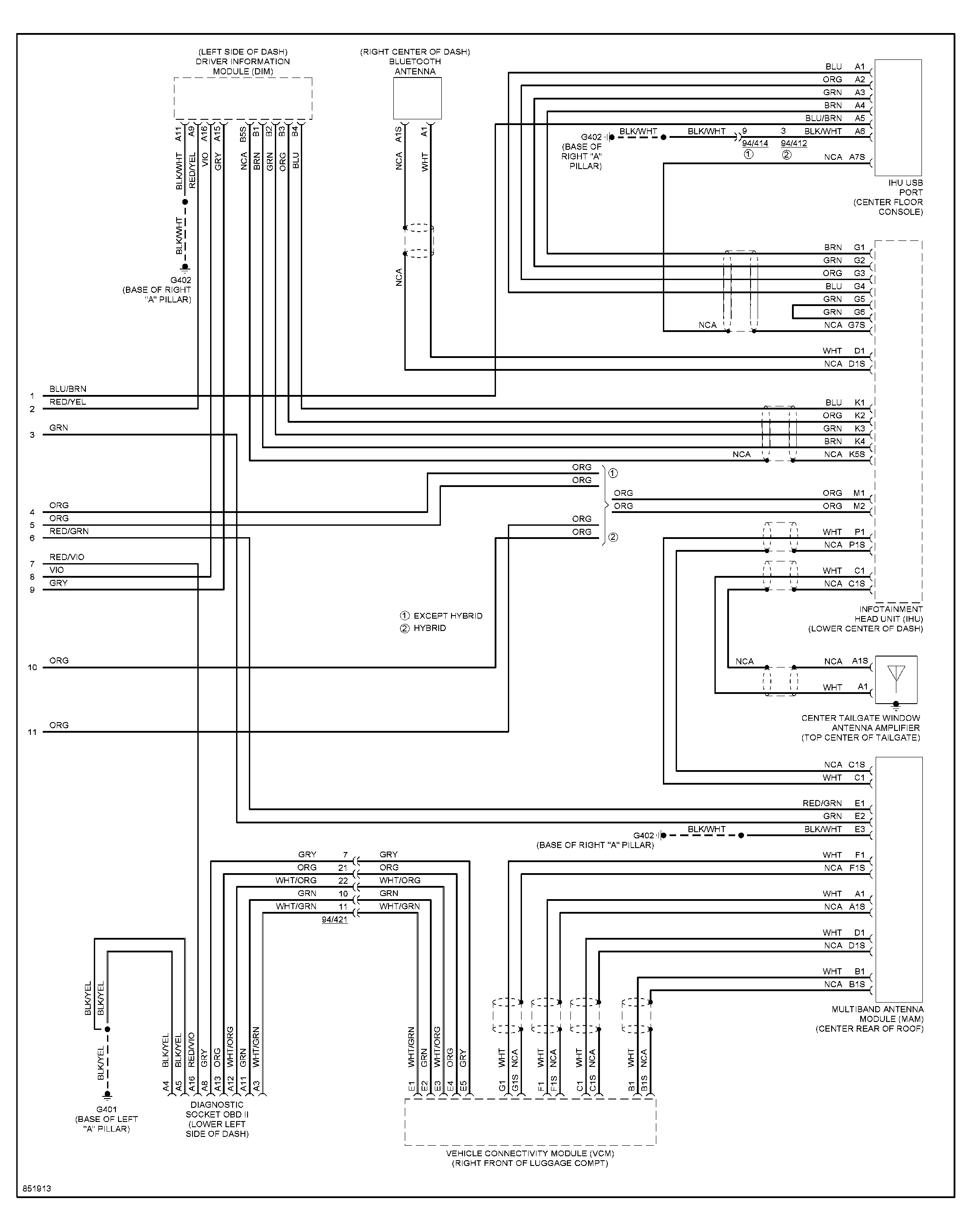

Fig 4: Navigation Circuit (3 of 5)

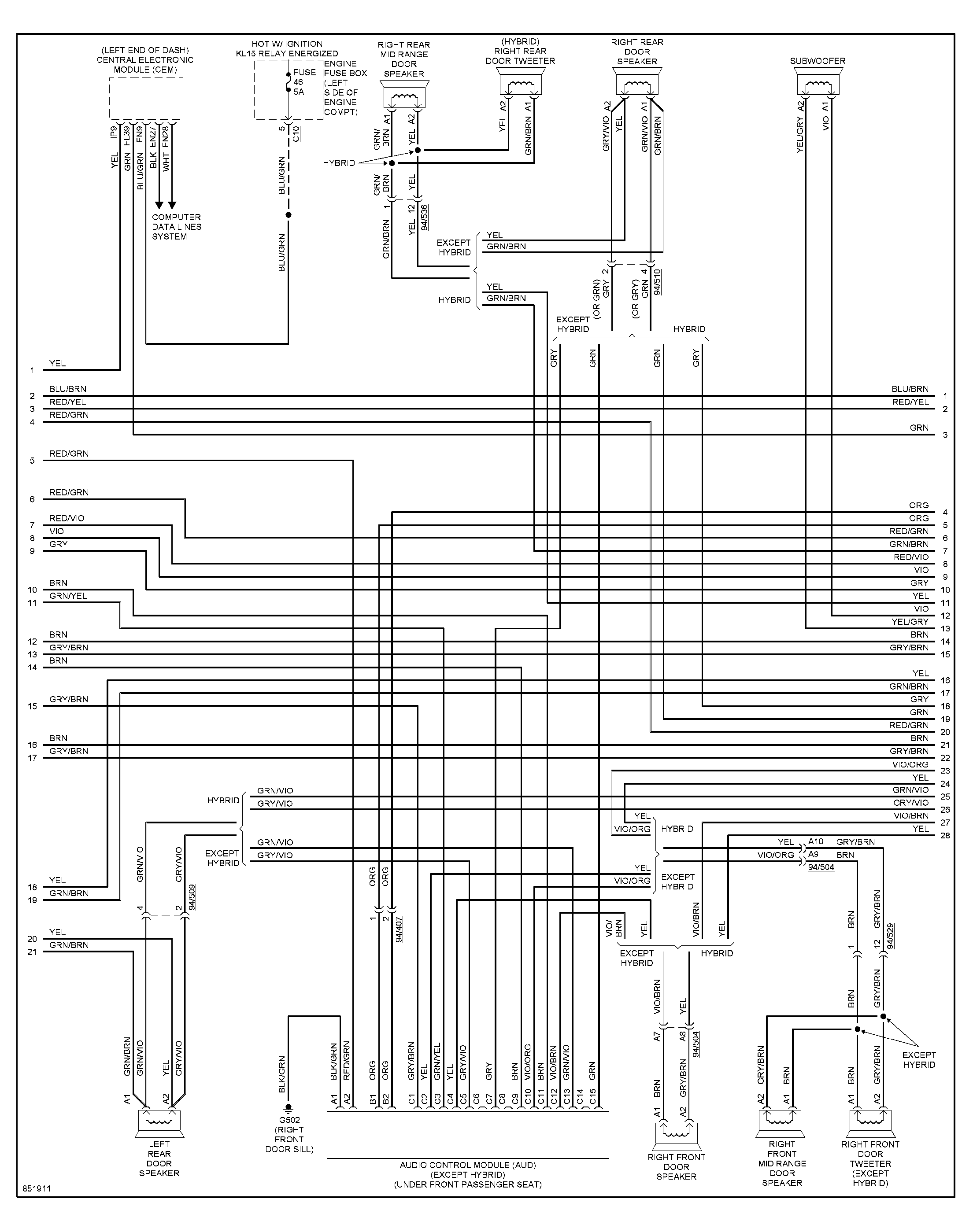

Fig 5: Navigation Circuit (4 of 5)

Fig 6: Navigation Circuit (5 of 5)

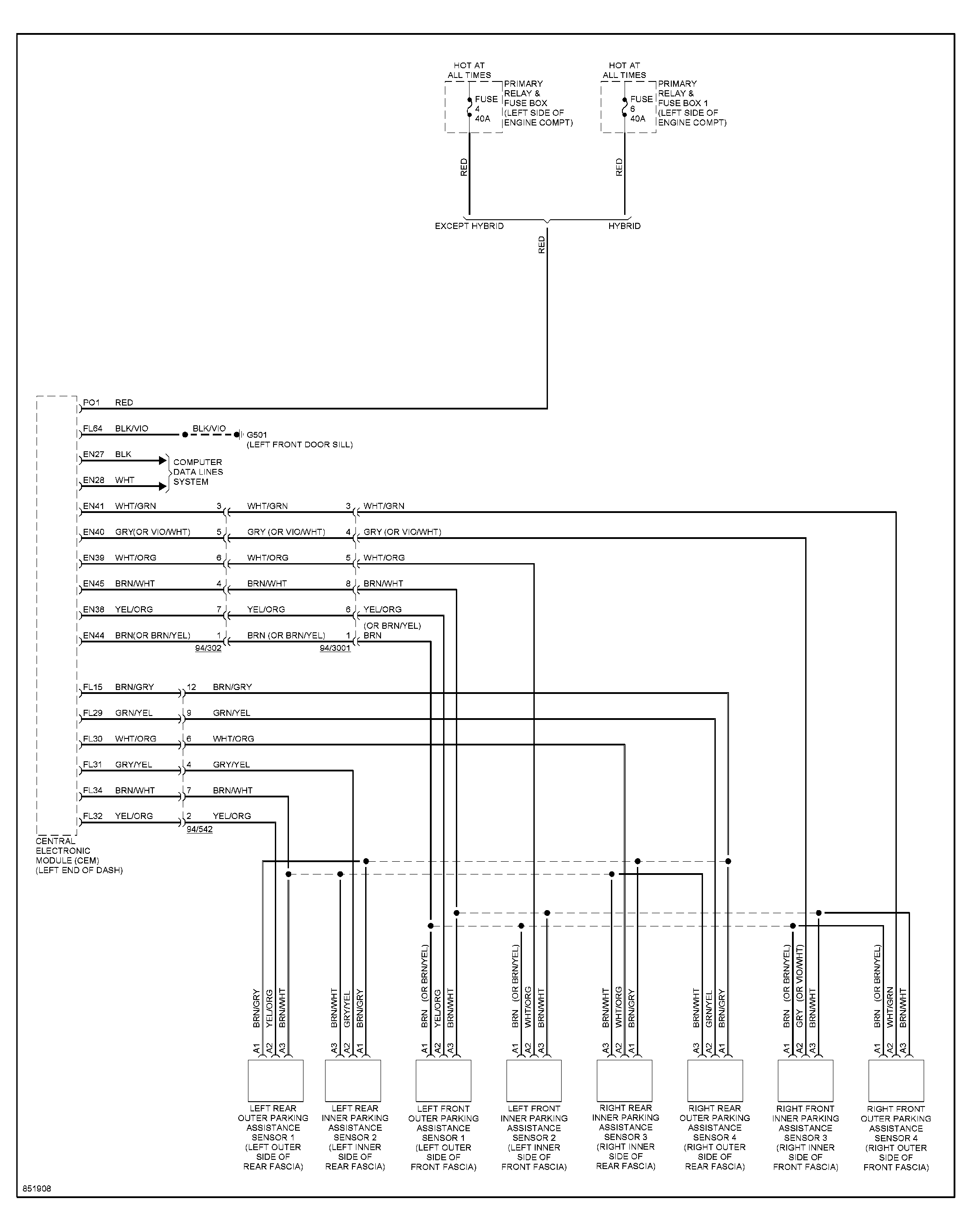

Fig 7: Parking Assistant Circuit

Fig 8: Parking Camera Circuit
