Power Distribution

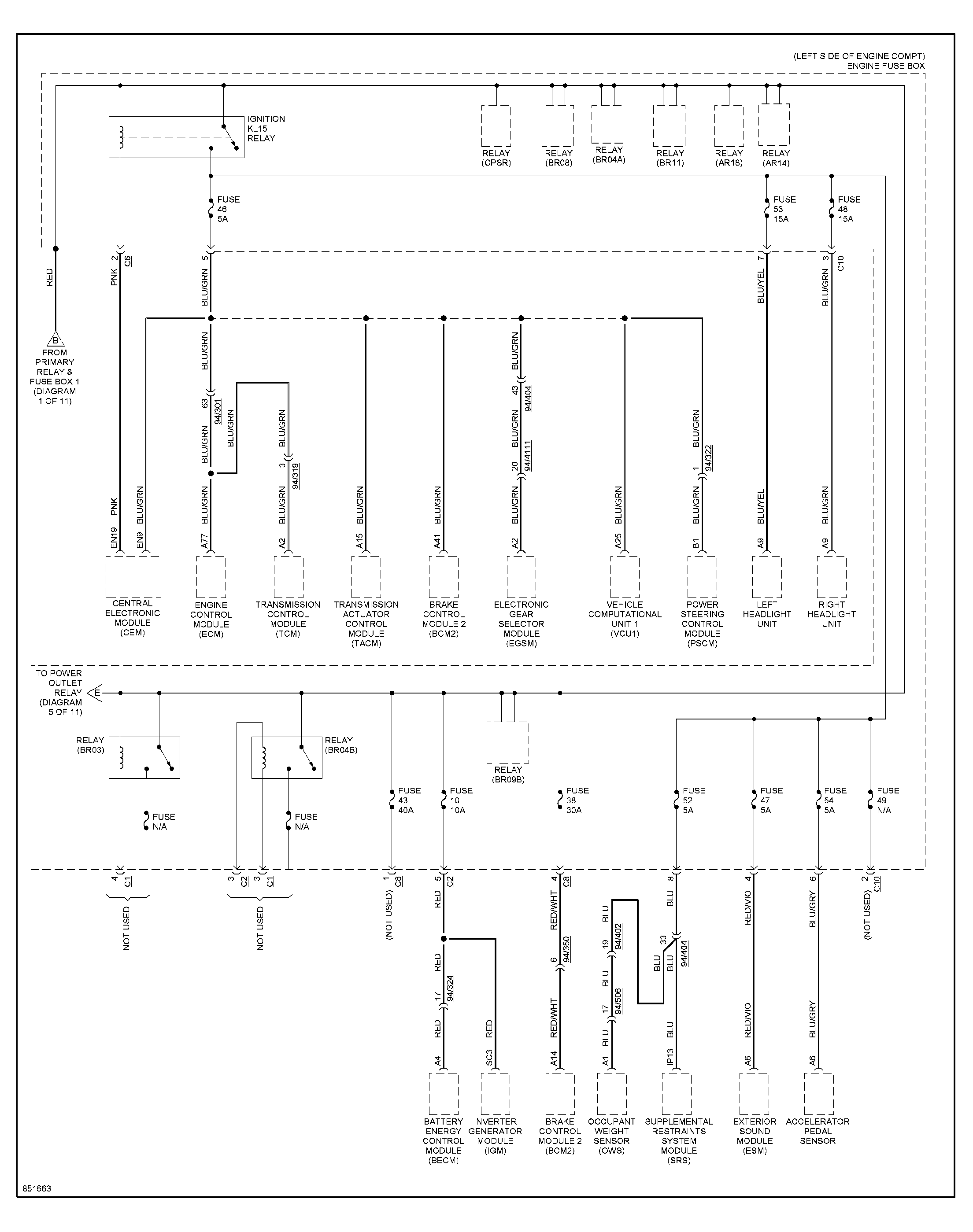

Fig 1: Power Distribution Circuit, Except Hybrid (1 of 10)

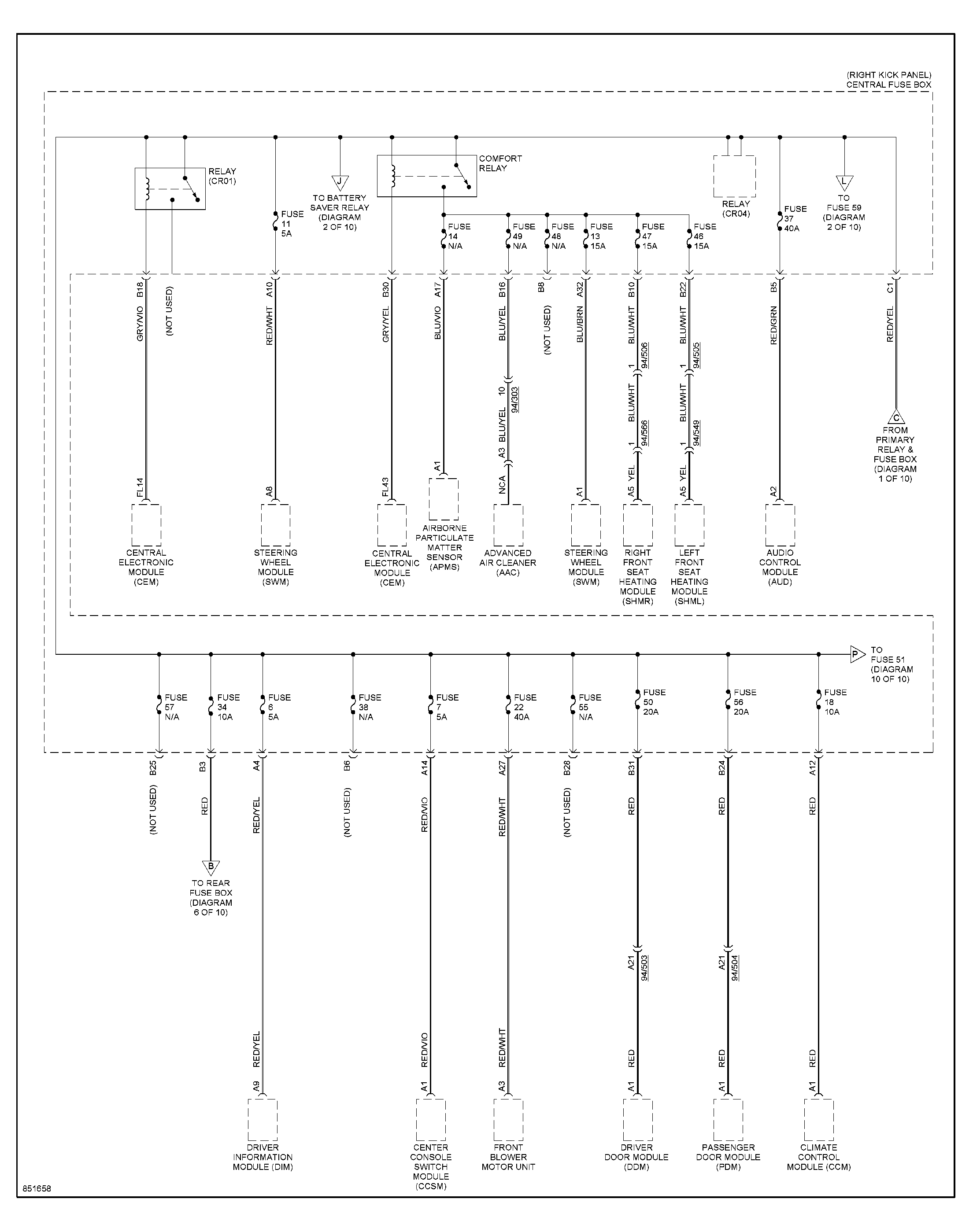

Fig 2: Power Distribution Circuit, Except Hybrid (2 of 10)

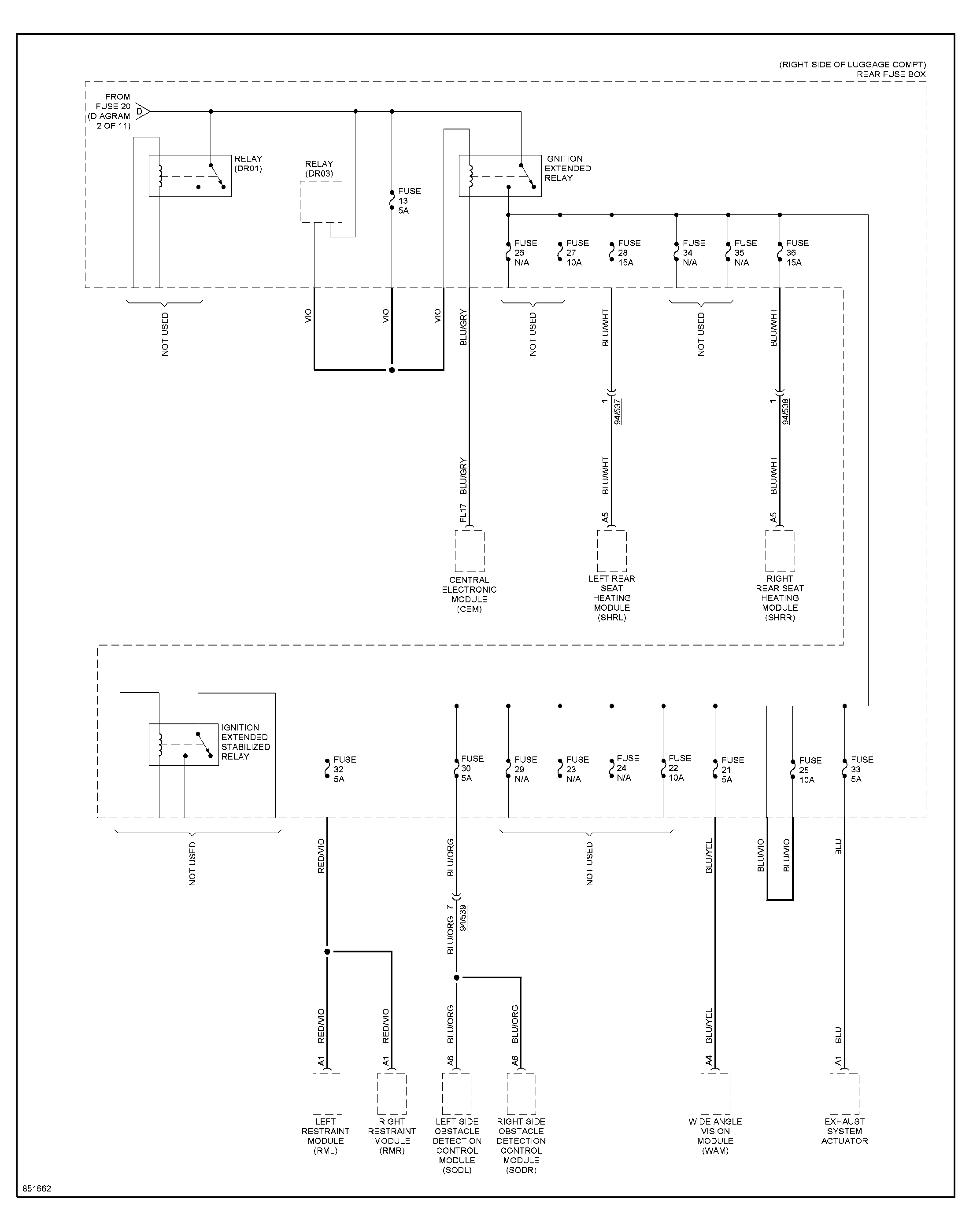

Fig 3: Power Distribution Circuit, Except Hybrid (3 of 10)

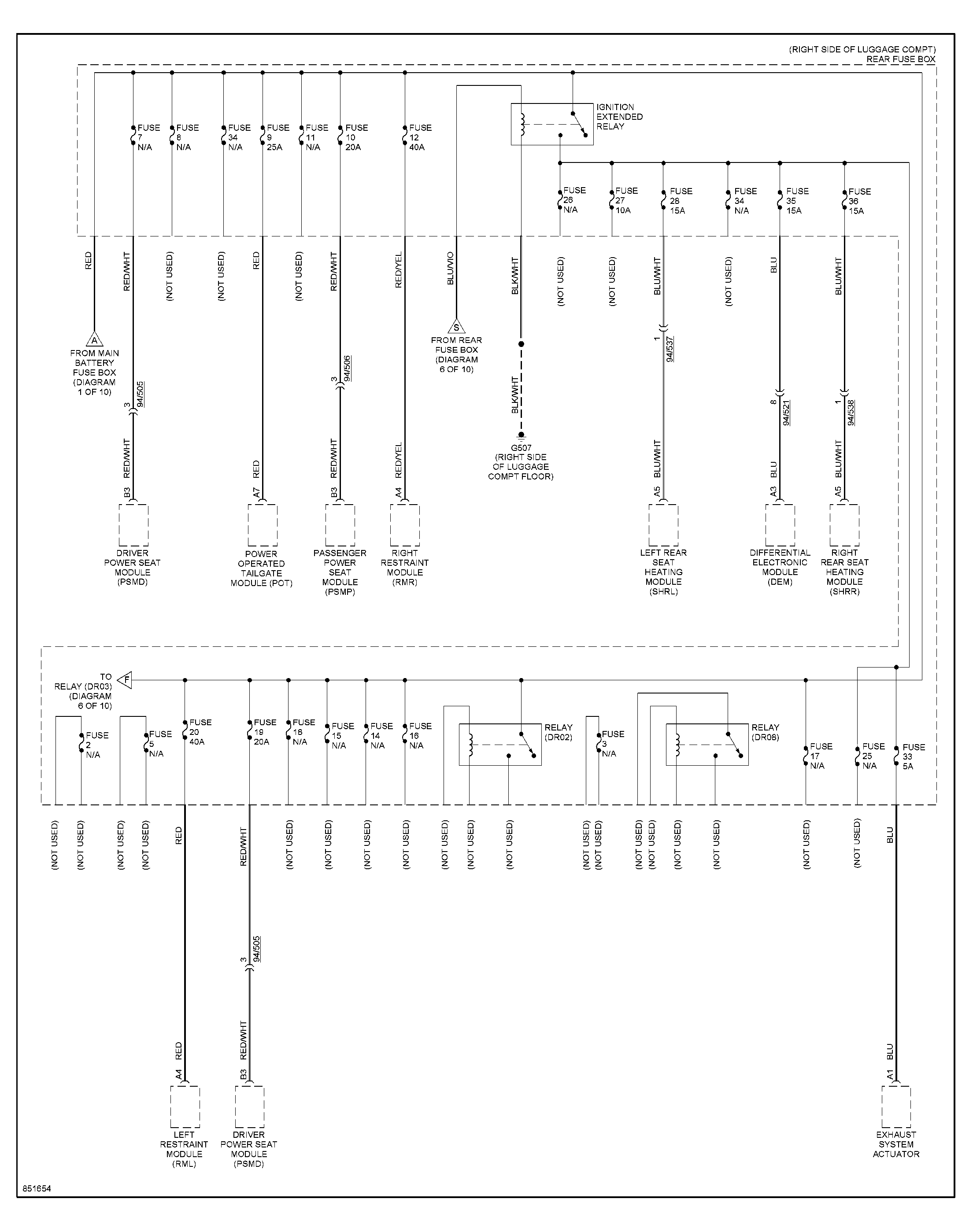

Fig 4: Power Distribution Circuit, Except Hybrid (4 of 10)

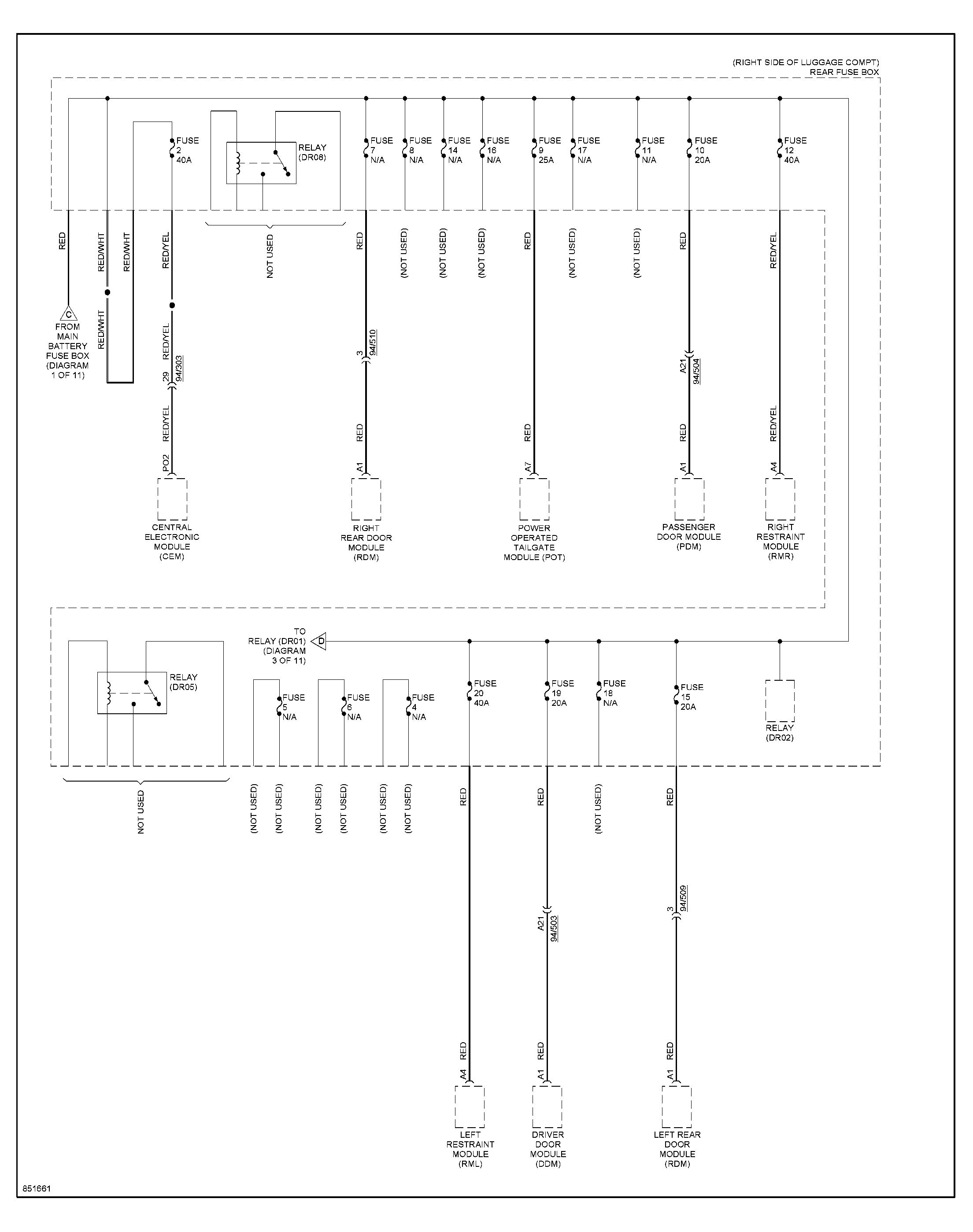

Fig 5: Power Distribution Circuit, Except Hybrid (5 of 10)

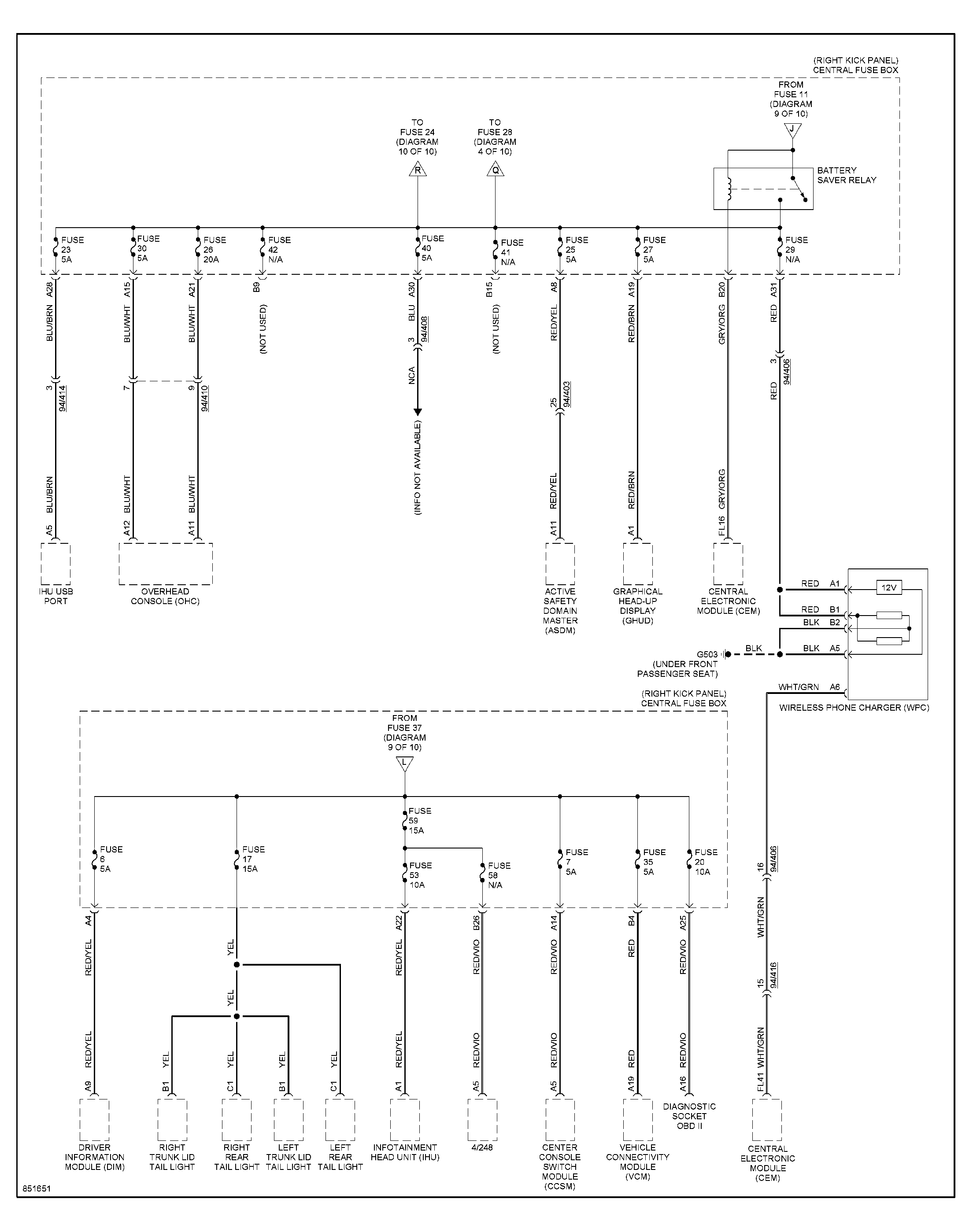

Fig 6: Power Distribution Circuit, Except Hybrid (6 of 10)

Fig 7: Power Distribution Circuit, Except Hybrid (7 of 10)

Fig 8: Power Distribution Circuit, Except Hybrid (8 of 10)

Fig 9: Power Distribution Circuit, Except Hybrid (9 of 10)

Fig 10: Power Distribution Circuit, Except Hybrid (10 of 10)

Fig 11: Power Distribution Circuit, Hybrid (1 of 11)

Fig 12: Power Distribution Circuit, Hybrid (2 of 11)

Fig 13: Power Distribution Circuit, Hybrid (3 of 11)

Fig 14: Power Distribution Circuit, Hybrid (4 of 11)

Fig 15: Power Distribution Circuit, Hybrid (5 of 11)

Fig 16: Power Distribution Circuit, Hybrid (6 of 11)

Fig 17: Power Distribution Circuit, Hybrid (7 of 11)

Fig 18: Power Distribution Circuit, Hybrid (8 of 11)

Fig 19: Power Distribution Circuit, Hybrid (9 of 11)

Fig 20: Power Distribution Circuit, Hybrid (10 of 11)

Fig 21: Power Distribution Circuit, Hybrid (11 of 11)
