Power Seats

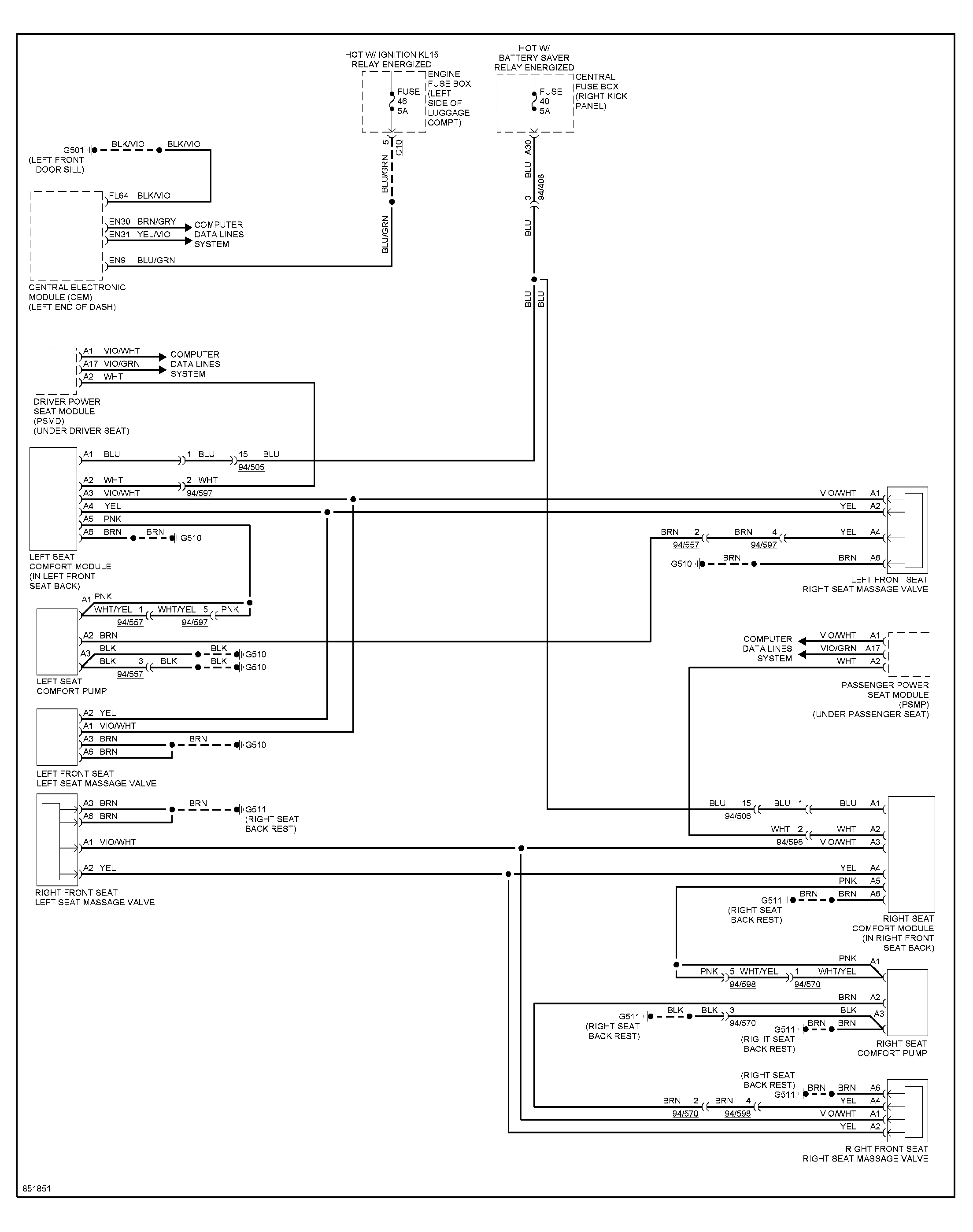

Fig 1: Comfort Seats Circuit

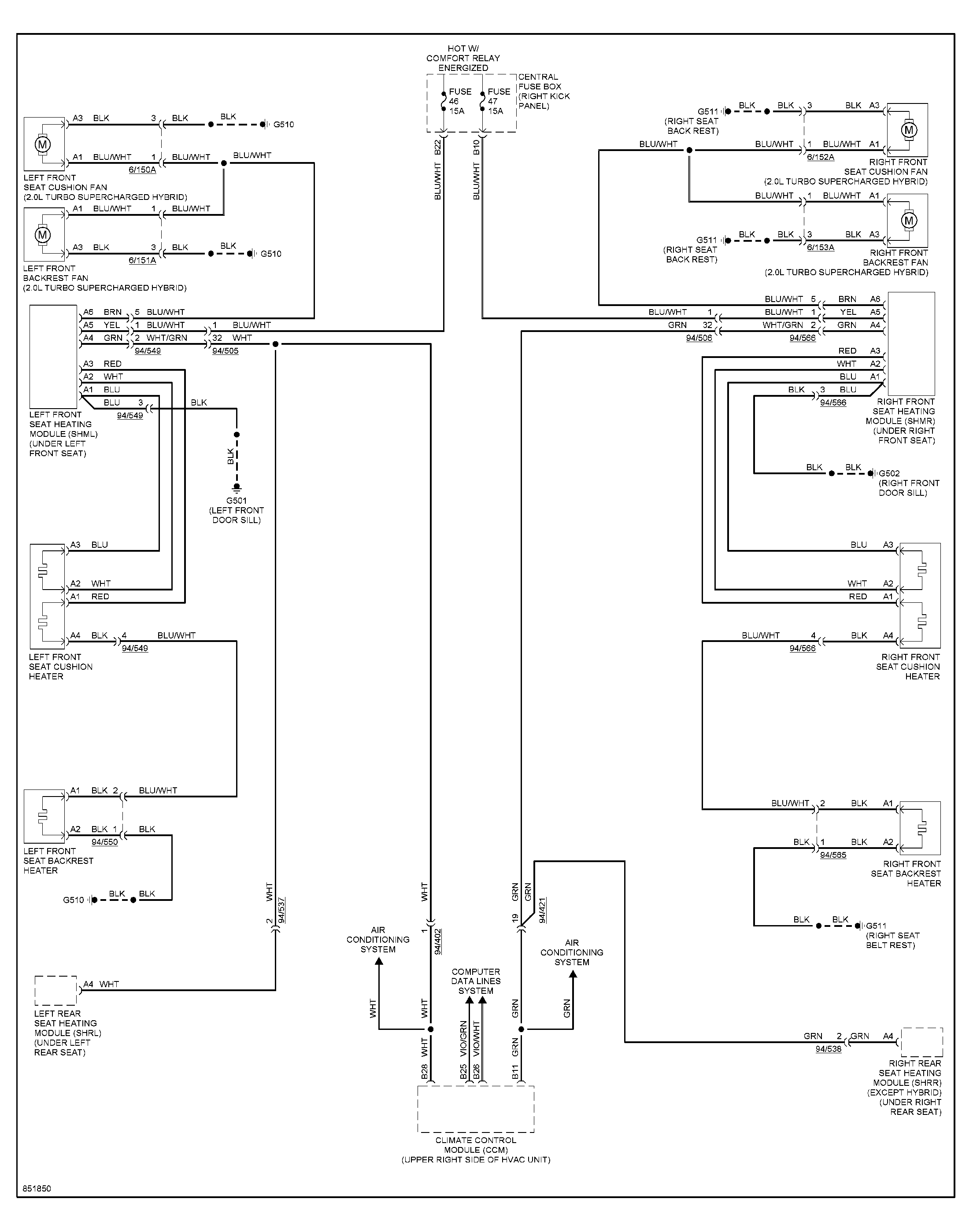

Fig 2: Front Heated Seats Circuit

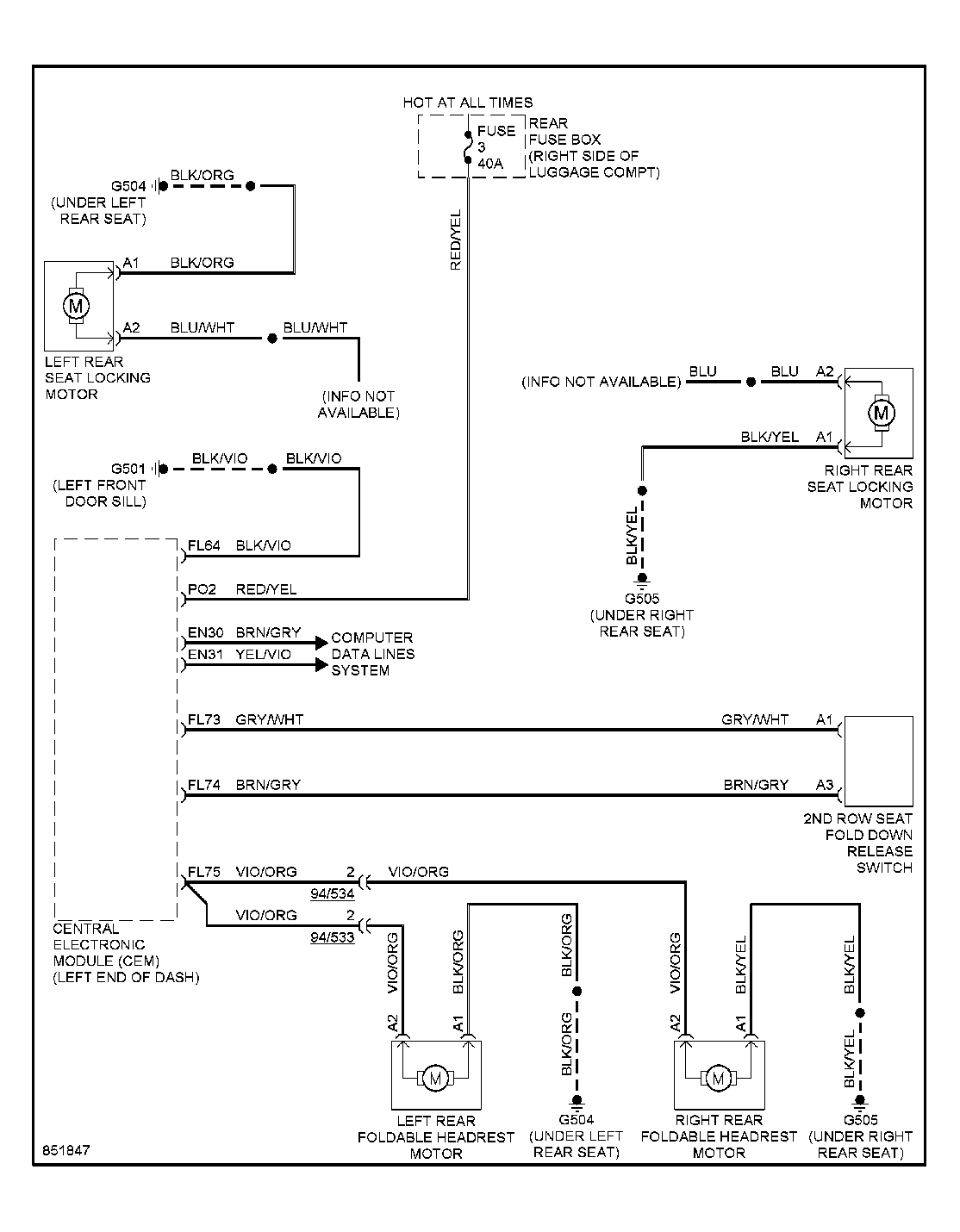

Fig 3: Headrest Circuit

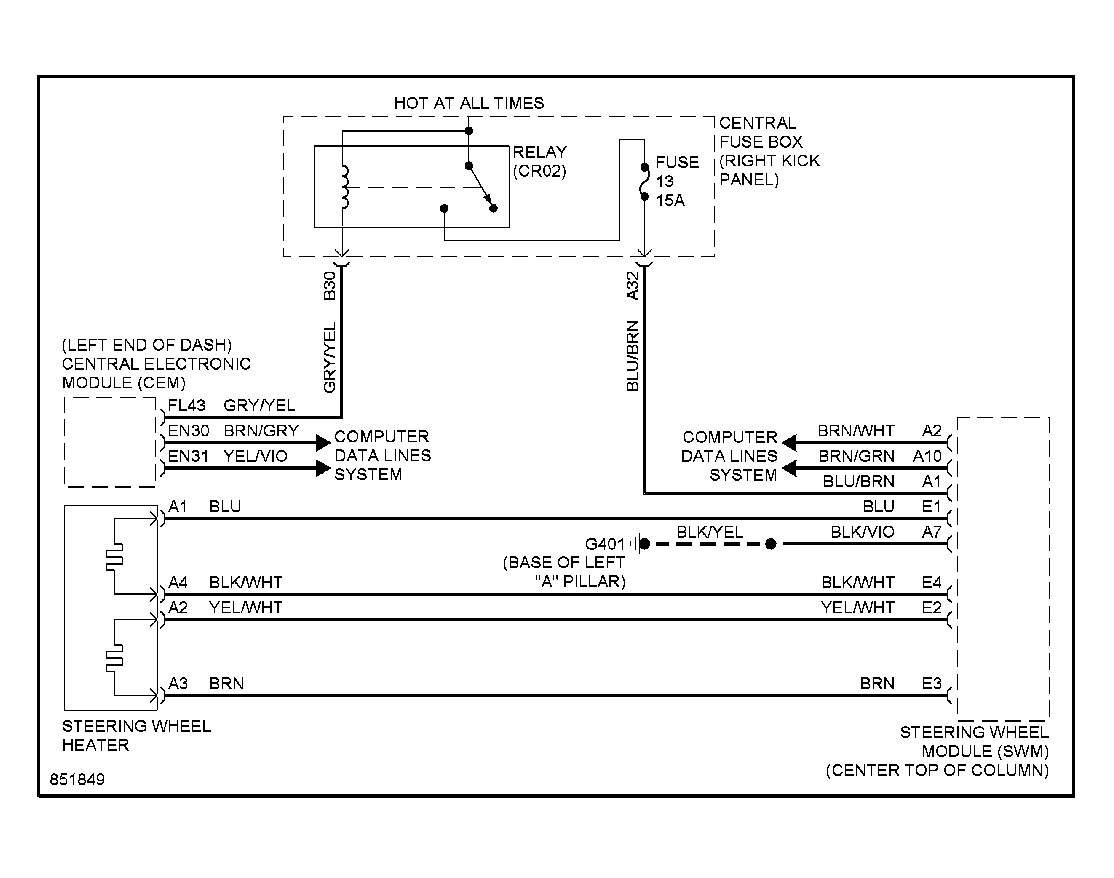

Fig 4: Heated Steering Wheel Circuit

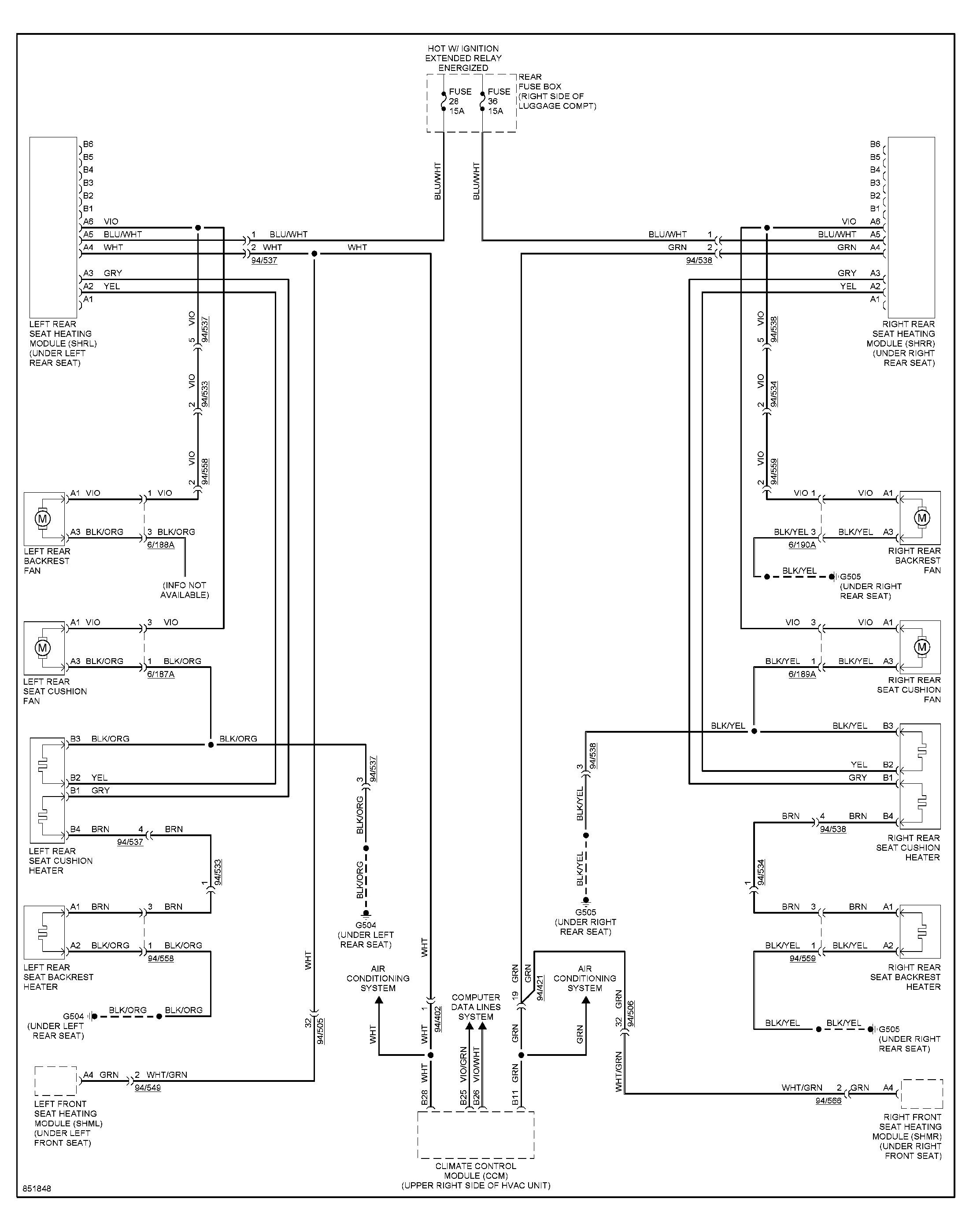

Fig 5: Rear Heated Seats Circuit
